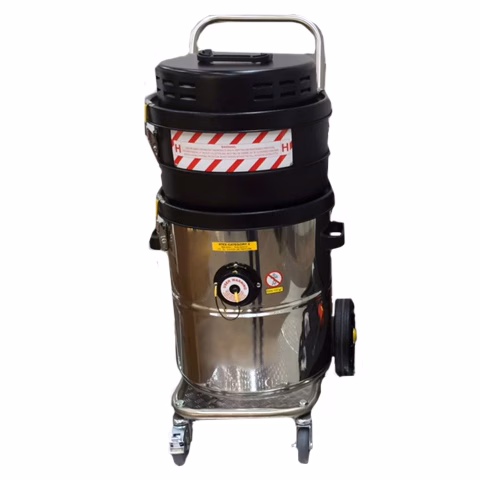

KAV30 Pneumatic Wet & Dry Vacuum
The K series range of industrial dust collectors is a key component of Trelawny’s TVS® (Tool and Vacuum System). The KAV30, a pneumatic vacuum with twin motors, is engineered for the most challenging environments and tasks while maintaining portability. This makes it an ideal match for Trelawny’s descaling tools, ensuring top-notch performance and ease of transport. The KAV30 is ATEX approved for Gas Zone 1 and Dust Zone 21, meeting Category 2 requirements of the ATEX Directive.
ATEX approved options available
Non spark options available
Compatible with Trelawny Vacuum systems
Applications
- Recommended for use with Trelawny’s TVS® range of descaling tools and machines.
- Collection of dust in hazardous environments categorised under category 2 of the ATEX directive.
- Collection of dry dust and wet materials.
Features
- 30 litre capacity.
- Dry, Wet & Dry and Type H versions available.
- Supplied with anti-static 38mm tool kit.
- Trelawny KAV30 Vacuum ATEX Classification: EX II GD C II C T50⁰C (T6). Certified for use in Gas Zone 1.
Key specifications

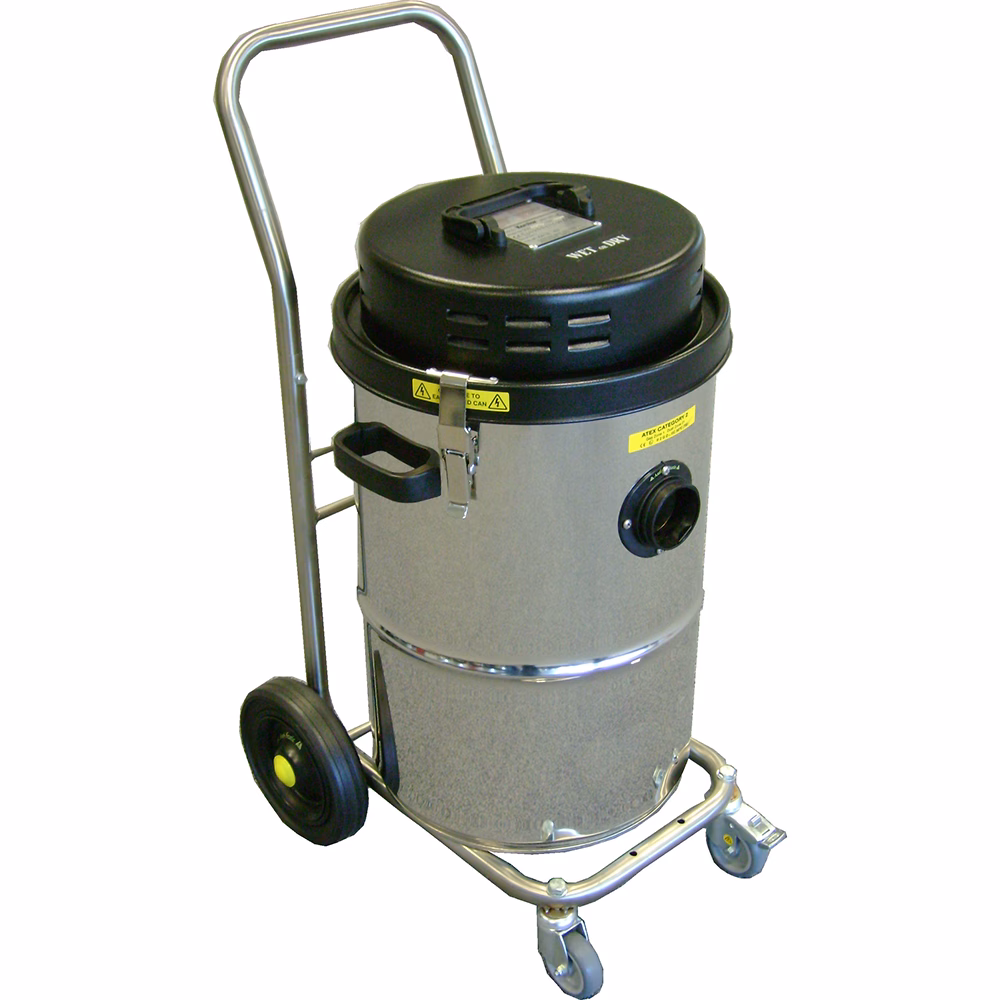

KAV30 Dry
303.10KAV30/D
| Part Number | 303.10KAV30/D |
| Capcity (litres) | 30 |
| Output Flow (M³ per h / Lt per sec) | 110 – 33 |
| Air Consumption (Lt per sec / cfm) | 16 – 35 |
| Maximum vacuum at 100psi (mm H20) | 2500mm / water gauge |
| Dimensions (mm) | 890 x 460 x 500 |
| Weight (kg) | 14.5 |
KAV30 Dry Type H
303.10KAV30/DH
| Part Number | 303.10KAV30/DH |
| Capcity (litres) | 30 |
| Output Flow (M³ per h / Lt per sec) | 110 – 33 |
| Air Consumption (Lt per sec / cfm) | 16 – 35 |
| Maximum vacuum at 100psi (mm H20) | 2500mm / water gauge |
| Dimensions (mm) | 1110 x 460 x 500 |
| Weight (kg) | 20.8 |
KAV30 Wet
303.10KAV30/WD
| Part Number | 303.10KA30/WD |
| Capcity (litres) | 30 |
| Output Flow (M³ per h / Lt per sec) | 110 – 33 |
| Air Consumption (Lt per sec / cfm) | 16 – 35 |
| Maximum vacuum at 100psi (mm H20) | 2500mm / water gauge |
| Dimensions (mm) | 890 x 460 x 500 |
| Weight (kg) | 14.5 |
Consumables
14’’ Standard Filter Assembly
Part no. 303.1025
14’’ Float Assembly
Part no. 303.1050/AS
K4 Disposable Bags – Pack of 10
Part no. 303.1005
Drum Adapter HEPA Cartridge
Part no. 303.1062
HEPA Filter
Part no. 303.1061
5 X K4 Microfibre Bags
Part no. 303.1003
View moreView less
Accessories
38mm Stainless Steel Taper Tube
Part no. 303.1110
38mm x 125mm Dusting Brush
Part no. 303.1105/AS
Multipurpose Tool with Brushes
Part no. 303.1100
38mm Wet Tool Kit
Part no. 303.1095/AS

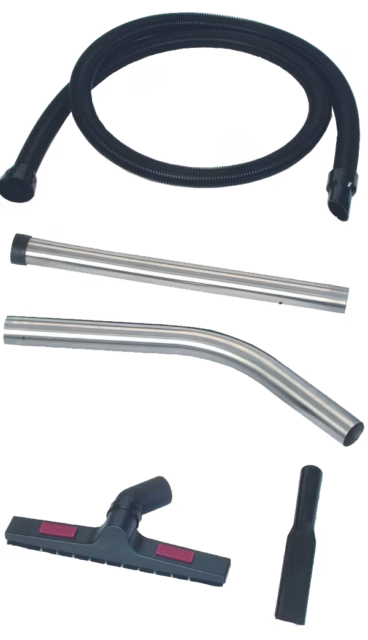

38mm Dry Tool Kit
Part no. 303.1085/AS
Anti-Static Hose
Part no. 303.1075/AS
View moreView less
