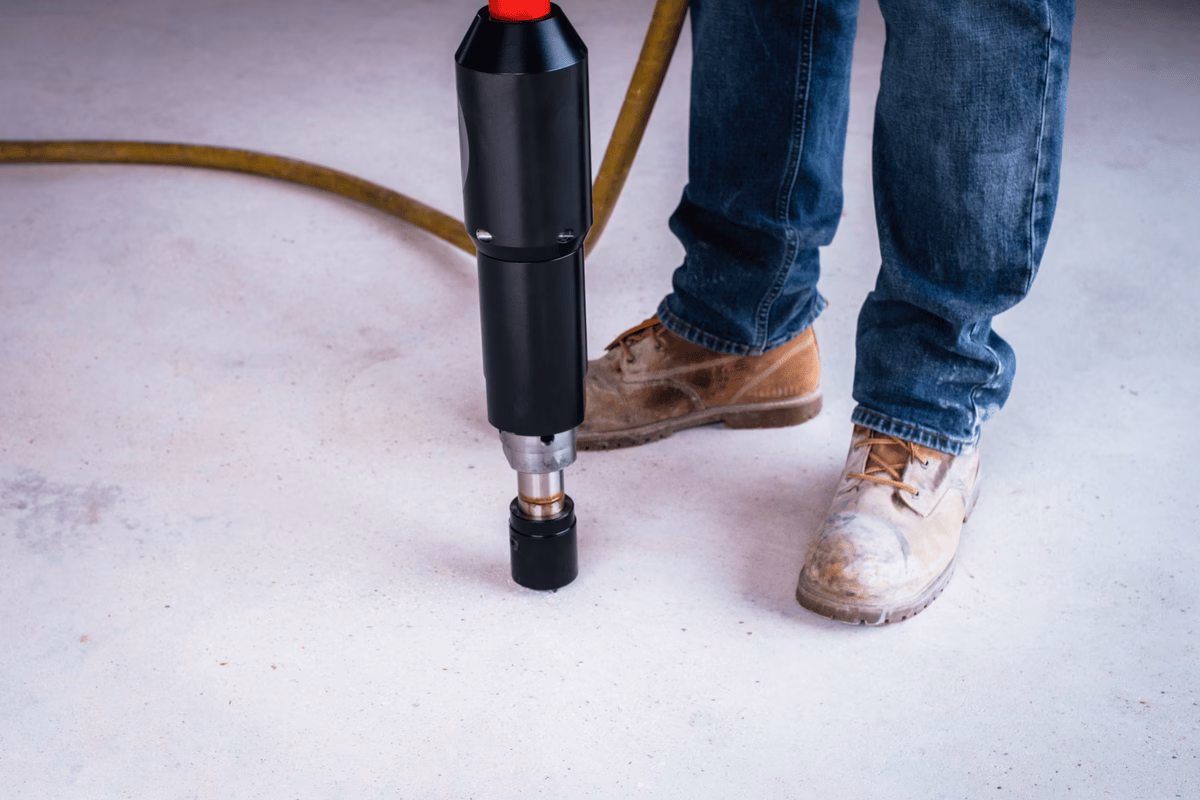

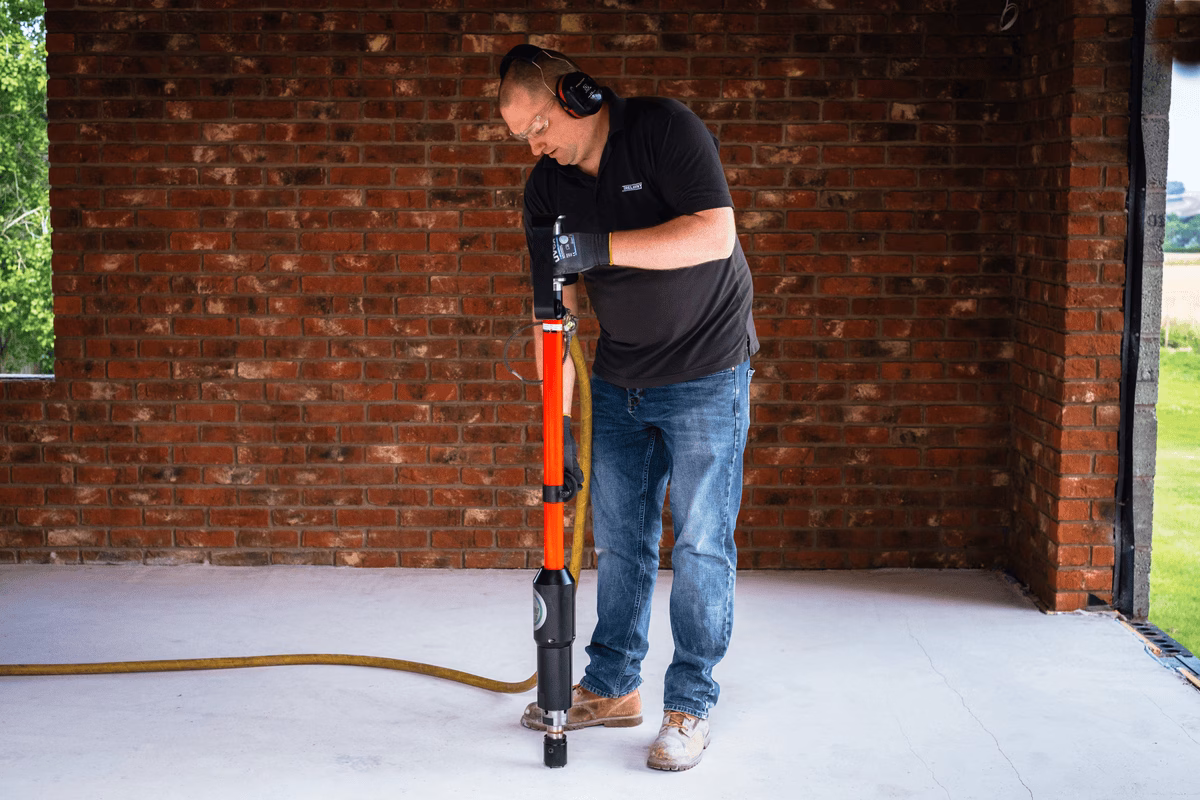

LPS55 Pole Scabbler

The LPS55 is a robust long-reach scabbler designed for vertical surface preparation in hard-to-reach areas. It delivers powerful blows to efficiently remove concrete while protecting the underlying substrate from damage.

Contact us for operations manuals and datasheets
Enquire now
Or find a distributor

Low vibration options available

Applications
  • Heavy scabbling of hard to access areas such as below re-enforcement bars and between shuttering.
  • Scabbling of corners, edges and joints.
  • Fast removal of material.
  • Aggressive keying without damaging the substrate.
Features
  • Easy to change cutter heads minimise downtime.
  • Angled air inlet to direct hose away from operator.
  • Hand guard to protect operator.
  • At 1.4 metres in length it allows scabbling into inaccessible areas.
  • Compactor foot attachment available for increased functionality.
  • 9 point head option available for profiling.
Key specifications
LPS55 c/w 5 Point Scabbler Head
150.5001
Part No. 150.5001
Weight (kg) 13.4
Length (mm) 1392
Blows Per Minute (BPM) 1100
Air Consumption (lps – cfm) 11.61 – 24.6
Vibration level (Aeq m/s2) 35.0
VL LPS55 c/w 9 Point Scabbler Head
150.5002
Part No. 150.5002
Weight (kg) 13.4
Length (mm) 1392
Blows Per Minute (BPM) 1100
Air Consumption (lps – cfm) 11.61 – 24.6
Vibration level (Aeq m/s2) 35.0
LPS55 c/w 5" Round Compactor Foot
150.5031
Part No. 150.5031
Weight (kg) 13.0
Length (mm) 1392
Blows Per Minute (BPM) 1100
Air Consumption (lps – cfm) 11.61 – 24.6
Vibration level (Aeq m/s2) 44.5
LPS55 4''x 4'' Compactor Foot
150.5030
Part No. 150.5030
Weight (kg) 13.0
Length (mm) 1392
Blows Per Minute (BPM) 1100
Air Consumption (lps – cfm) 11.61 – 24.6
Vibration level (Aeq m/s2) 43.0
LPS55 6'' x 5'' Compactor Foot
150.5021
Part No. 150.5021
Weight (kg) 13.5
Length (mm) 1392
Blows Per Minute (BPM) 1100
Air Consumption (lps – cfm) 11.61 – 24.6
Vibration level (Aeq m/s2) 43.6
Consumables
Scabbler Head

5 Point Bush

Part no. 441.5359
Scabbler Head

9 Point Bush

Part no. 441.5369
Scabbler Head

Cruciform

Part no. 441.5360
Compactor Foot

127mm Dia

Part no. 450.5017
Compactor Foot

100mm x 100mm

Part no. 450.5011
Compactor Foot

127mm x 152mm

Part no. 450.5013
Compactor Foot

100mm x 200mm

Part no. 450.5016
View moreView less
Accessories
LPS55 Service Kit
Part no. 446.5055
Whip Hose & Oiler Assembly
Part no. 458.1580
¾’’ BSP Inline Lubricator
Part no. 859.1580
¾’’ Air Hose Complete with couplings

15m length

Part no. 843.0752
Whip Check
Part no. 815.5550
ISSA: 55.091.73
