SF1 and SF3 Scaling Hammers

Trelawny’s SF range of scaling hammers excels at the rapid removal of heavy scale and coatings. Designed to be lightweight and easy to handle, these hammers are ideal for accessing tight spaces behind structures and up against bulkheads. The single-head model is suitable for smaller, hard-to-reach areas, while the triple-head model offers increased efficiency for larger, open spaces, delivering faster production.

Enquire now

Or find a distributor

ATEX approved options available

Low vibration options available

Applications

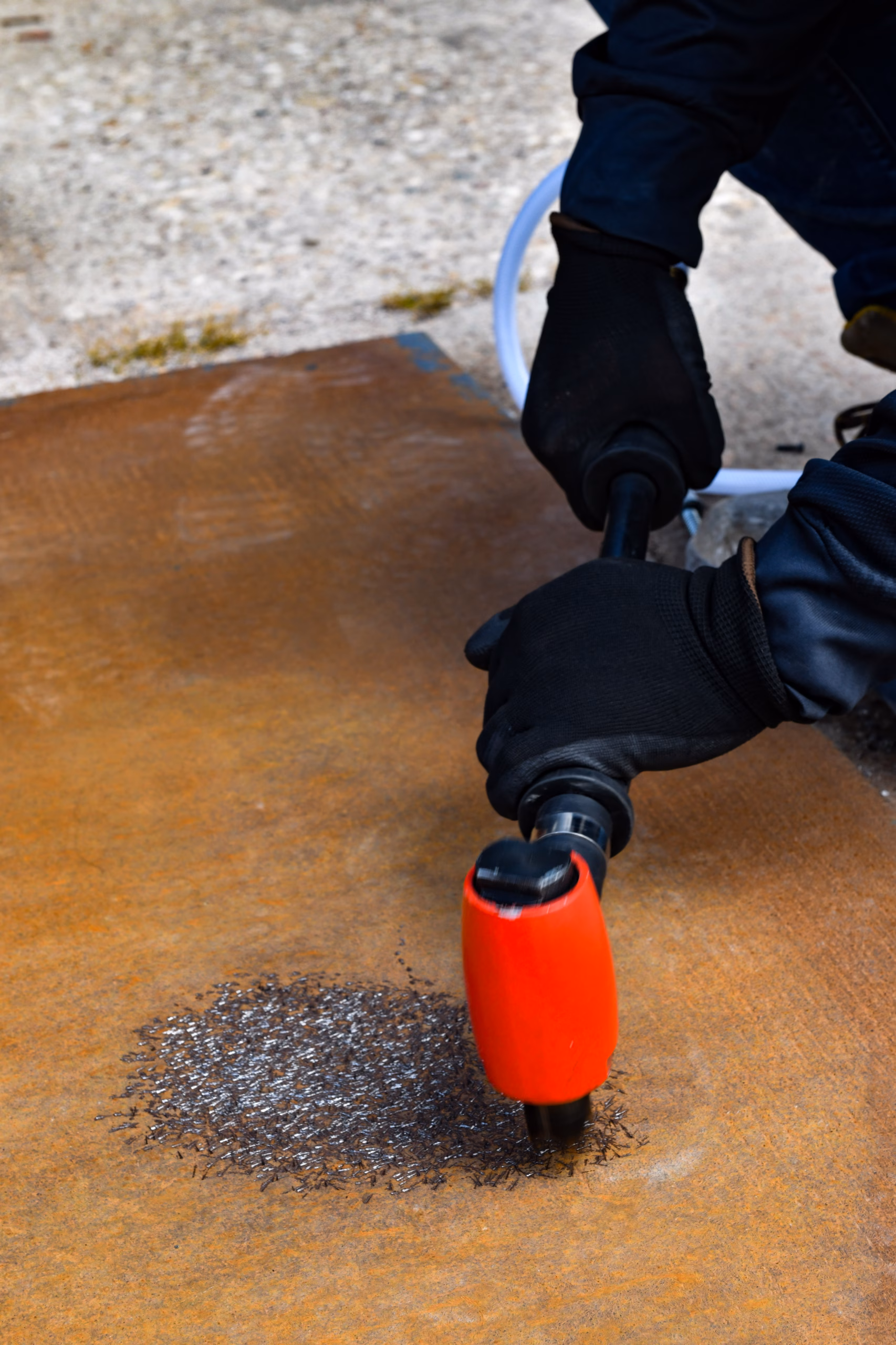

Removal of thick coatings, rust, and other accumulated materials.
Preparation before blasting.
Oil platform maintenance.
Pipe cleaning in preparation for inspection and repair.
Coating spot repairs.
Use ATEX certified options for Ex Gas and Dust Zone Applications on rigs, petrochemical plants.

Features

Easy to change cutter heads to minimise downtime.
Low vibration model (single) maximising operator productivity.
Non-Spark and ATEX Options available, for use without hot work permits.
Ergonomic handle for ease of use – also available with a short handle and/or inline for tight areas.
Standardised components overall SF Ex models for cost effective maintenance.

Key specifications

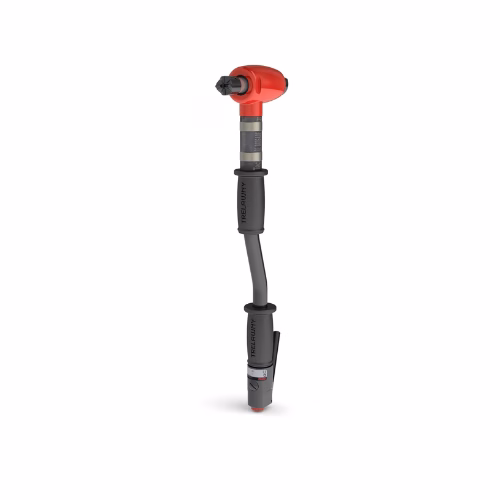

SF1 Vibro-Lo Single Head

196.5095

Part No.	196.5095
IMPA Part No.	59.03.84
ISSA Part No.	55.093.20
Weight (kg)	2.5
Length (mm)	465
Working Height (mm)	140
Blows Per Min (BPM)	3000
Air Consumption (lps – cfm)	4.25 -9
Noise Level (db (A))	92.5
Vibration level (Aeq m/s2)	3.7

SF1 Vibro-Lo Single Head EX

196.5110

Part No.	196.5110
IMPA Part No.	N.A
ISSA Part No.	N.A
Weight (kg)	2.5
Length (mm)	515
Working Height (mm)	140
Blows Per Min (BPM)	3000
Air Consumption (lps – cfm)	4.25-9
Noise Level (db (A))	92.5
Vibration level (Aeq m/s2)	3.7

SF3 Triple Head

153.5300

Part No.	151.5300
IMPA Part No.	N.A
ISSA Part No.	55.093.10
Weight (kg)	3.7
Length (mm)	485
Working Height (mm)	152.5
Blows Per Min (BPM)	3000 x 3
Air Consumption (lps – cfm)	5.2 – 11
Noise Level (db (A))	92.7
Vibration level (Aeq m/s2)	13.4

SF3 Triple Head EX

153.5310

Part No.	153.5310
IMPA Part No.	N.A
ISSA Part No.	N.A
Weight (kg)	3.7
Length (mm)	450
Working Height (mm)	152.5
Blows Per Min (BPM)	3000 x 3
Air Consumption (lps – cfm)	5.2 – 11
Noise Level (db (A))	92.7
Vibration level (Aeq m/s2)	13.4

Consumables

Cruciform taper fit cutter head

Part no. 426.5351

IMPA: 59.03.98

ISSA: 55.095.05

Cruciform taper fit cutter head

Part no. 606.5303

IMPA: 59.03.99

ISSA: 55.095.06

Bush hammer taper fit cutter head

Part no. 426.5352

Piston

Part no. 612.5301

View moreView less

Accessories

SF1 Service Kit

Part no. 446.1520

SF1Ex Service Kit

Part no. 446.1520X

SF3 Service Kit

Part no. 446.1530

SF3Ex Service Kit

Part no. 446.1530X

Whip Hose & Oiler Assembly

Part no. 458.1555

½’’ BSP Inline lubricator

Part no. 859.1555

Whip Hose

Part no. 421.3452

Whip Check

Part no. 815.5550

ISSA: 55.091.73

View moreView less
