TFP200 Deck Scaler

The TFP200 Deck Scaler is ideal for removing coatings and corrosion from ship decks, hatches, and tank tops. Its rigid steel chassis provides a strong, stable platform for precise surface preparation. The scaler comes with a wide range of attachments to handle everything from light corrosion and cleaning to heavy descaling, ensuring versatility and effectiveness for various maintenance tasks.

Enquire now

Or find a distributor

Compatible with Trelawny Vacuum systems

Applications

Fast removal of coatings and corrosion.
Ship decks, tank tops and Hatch Covers.
Aggressive pre-preparation of thick coatings ahead of shot blasting.
Oil platform and heli deck descaling.

Features

Production rates up to 30m² per hour.
Adjustable hand-wheel for depth control.
Angled TVS® dust port for virtually dust free working.
Isolation safety switch to ensure operator safety.
Quick change cutter drum and consumables.

Key specifications

TFP 200 Petrol

320.2400T

Part Number	320.2400T
Height (mm)	900
Width	350
Length (Working Position)	900
Cutting width (Dependent on Cutters)	195
Cutter head speed	1833 rpm
Working distance from wall (mm)	55
Weight (Dependent on power unit)	64
Engine Type	Honda GX160 Petrol
Petrol Power unit	5.5hp Honda
Approximate Fuel Consumption	1.32 litre per hour
Power (HP- kW)	5.5 – 4.1
Vibration Levels	6.9
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Petrol Engine)
TCT Cutters (concrete)	6.9m/s2 (K=+1.25m/s2)
TCT Cutters (steel)	7.6m/s2 (K=+0.46m/s2)
Star Cutters (concrete)	8.2m/s2 (K=+2.62m/s2)
Star Cutters (steel)	9.5m/s2 (K=+0.65m/s2)
Beam Cutters (concrete)	13.0m/s2 (K=+1.42m/s2)
Beam Cutters (steel)	12.2m/s2 (K=+1.05m/s2)
Milling Cutters (concrete)	9.5m/s2 (K=+1.26m/s2)
Milling Cutters (steel)	12.6m/s2 (K=+1.36m/s2)
Wire Brush (concrete)	7.6m/s2 (K=+2.49m/s2)
Wire Brush (steel)	11.9m/s2 (K=+3.16m/s2)

TFP 200 110V TCT 50Hz

320.2402T

Part Number	320.2402T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall (mm)	55
Weight (Dependent on power unit)	71
Voltage (V)	110
Cycle (Hz)	50
Plug Size	32 Amp 3 pin
Transformer Size	3Kva
Cable Size (mm)	4
Cable Length (m)	20
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

TFP 200 230V TCT

320.2404T

Part Number	320.2404T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall (mm)	55
Weight (Dependent on power unit)	71
Voltage (V)	230
Cycle (Hz)	50 / 60
Plug Size	16 Amp 3 Pin
Cable Size (mm)	4
Cable Length (m)	40
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

TFP200 440v TCT

320.2406T

Part Number	320.2406T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall (mm)	55
Weight (Dependent on power unit)	71
Voltage (V)	440
Cycle (Hz)	50 / 60
Plug Size	16 Amp 5 Pin
Cable Size (mm)	4
Cable Length (m)	40
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

TFP 200 110V TCT 60Hz

320.2416T

Part Number	320.2416T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall (mm)	55
Weight (Dependent on power unit)	71
Voltage (V)	110
Cycle (Hz)	50
Plug Size	32 Amp 3 pin
Transformer Size	3Kva
Cable Size (mm)	4
Cable Length (m)	20
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

TFP 200 Air TCT

320.2412T

Part Number	320.2412T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1528
Working distance from wall (mm)	55
Weight (Dependent on power unit)	62
Power (HP- kW)	3.5 – 2.6
Vibration Levels	4.4
Air Consumption (lps – cfm)	78 -165
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

Consumables

Drum Assembly TCT Cutters

Part no. 320.1020ST

Drum Assembly Star Cutters

Part no. 320.1020SS

Drum Assembly Beam Cutters

Part no. 320.1020SB

Drum Assembly Twisted Knot Wire Brush

Part no. 320.9620

IMPA: 59.22.45

ISSA: 55.096.13

Drum Assembly Crimped Wire Brush

Part no. 320.9610

IMPA: 59.22.44

ISSA: 55.096.14

Tungsten Carbide Tipped Cutters

Part no. 320.5500

IMPA: 59.22.41

ISSA: 55.096.10

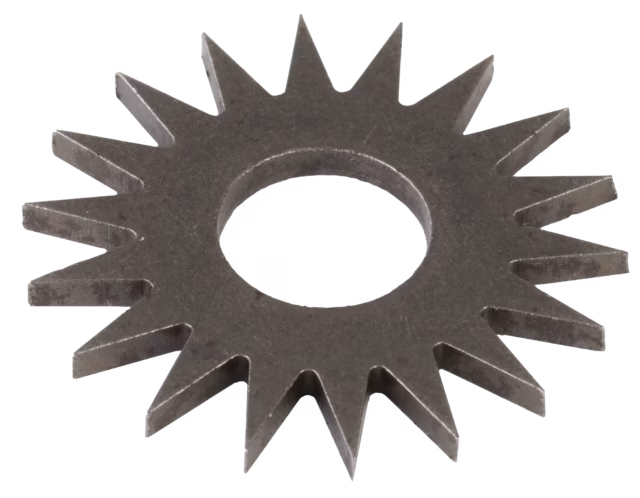

Star Cutters

Part no. 320.3658

IMPA: 59.22.42

ISSA: 55.096.11

Beam Cutters

Part no. 320.5120

IMPA: 59.22.43

ISSA: 55.096.12

Twisted Knot Wire Brush

Part no. 320.9622

Crimped Wire Brush

Part no. 320.9612

Spacers

Part no. 320.4140

Cutter Shafts 12mm Diameter

Part no. 320.0020

IMPA: 59.22.49

ISSA: 55.096.18

Heavy Duty Drum

Part no. 320.002H

IMPA: 59.22.47

ISSA: 55.096.16

View moreView less

Accessories

110v Power Cable

20m

Part no. 669.3121

230v Power Cable

20m

Part no. 669.3122

380v-440v Power Cable

20m

Part no. 669.3124

¾’’ Air Hose Complete with couplings

15m length

Part no. 843.0752

View moreView less
