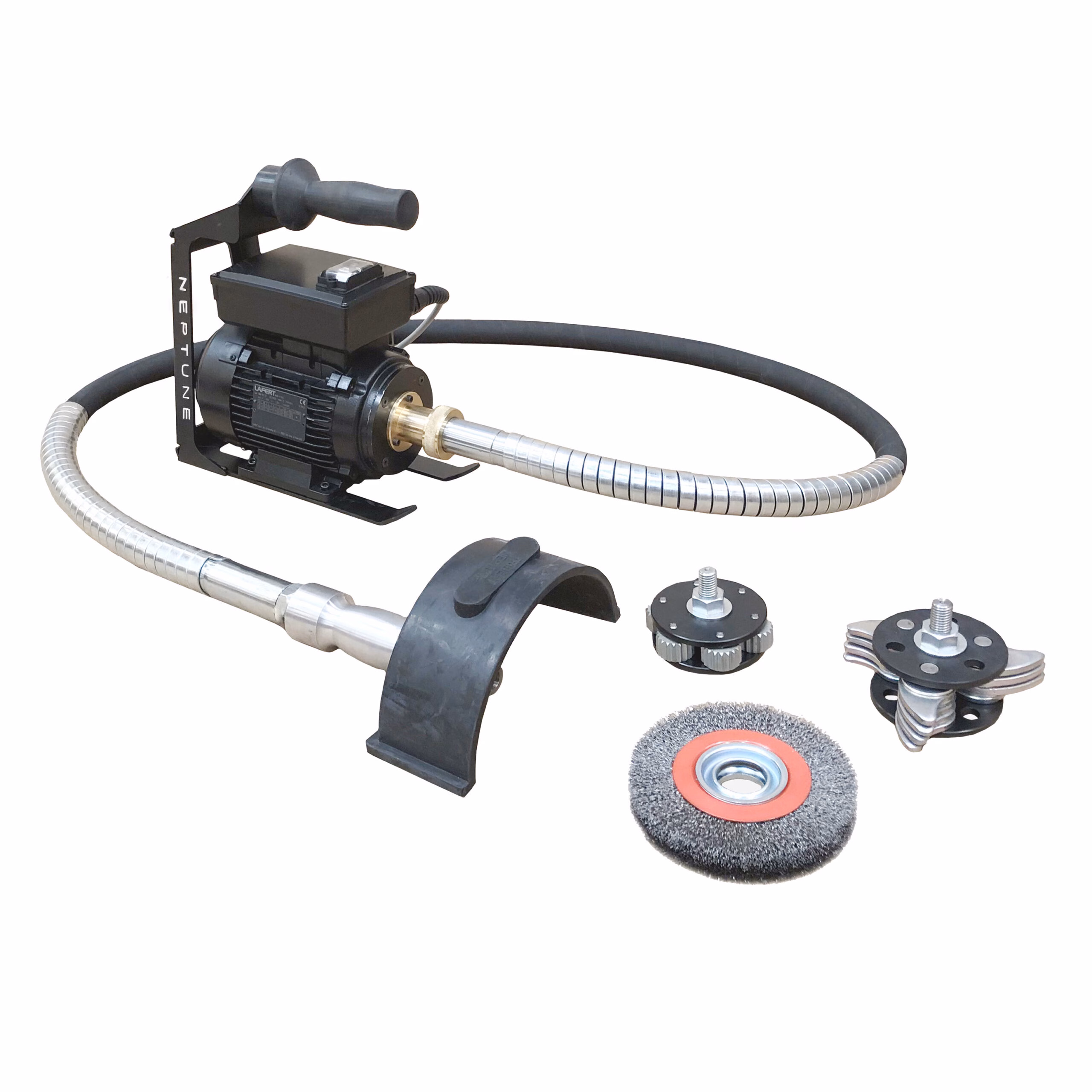

Trident Neptune

The Trident Neptune is an effective and versatile de-scaler that quickly and efficiently removes scale, rust, paint, and other unwanted deposits from a variety of surfaces. Its skid-mounted base enhances portability, allowing for easy movement and positioning to achieve optimal convenience and performance. Perfect for maintaining and refurbishing equipment, the Trident Neptune is engineered to deliver reliable and consistent results.

Enquire now

Or find a distributor

Applications

Rapid removal of scale, rust, paint and other unwanted coatings.
Fast removal of coatings and corrosion.
Ship decks, tank tops and Hatch Covers.
Aggressive pre-preparation of thick coatings ahead of shot blasting.
Oil platform and helideck descaling.

Features

IP55 Rated motor includes automatic thermal protection to protect motor from overheating.
Skid design base for increased portability and stability during use.
Direct drive design delivering high power and performance.
Wide range of accessories and consumables available.
Flexible drive helps increase manoverability, enabling access of difficult to reach areas such as railings, staircases, pipes and vertical surfaces.

Key specifications

Air

340.490/S

Part Number	340.490/S
IMPA Part Number	59.12.81
ISSA Part Number	55.077.03
Weight	34kg
Working Width (mm) (cutting width in manual)	30mm
Cutting Width (Chipping Leaves)	30mm
Cutting Width (Cutter Wheels)	17mm
Air Consumption (lps – cfm)	32.1 lps (68 cfm)
Power (Hp – kW)	1.5 – 1.1
Cutter Speed (rpm)	3000
Length (mm)	2700mm
Width (mm)	210mm
Height (mm)	290mm
Flexible Inner Shaft Diameter	16mm
Life Expectancy of Cutter Heads	50 hrs
Air motor – (Air Inlet J-Mac Claw Coupling)	6.2bar (90psi) – 32.1 lps (68 (cfm)
Noise (process noise not inc ) (LwA SWL)	73.1
Vibration at Dumbell Handle (Leaf Cutters)	8.7
Vibration at Dumbell Handle (Cutter Wheels)	5.4
Vibration at Dumbell Handle (Wire Brush)	10.1

110v Electric

340.TN/S/110

Part Number	340.TN/S/110
IMPA Part Number	59.12.41
ISSA Part Number	55.077.01
Weight	34kg
Working Width	30
Cutting Width (Chipping Leaves)	30mm
Cutting Width (Cutter Wheels)	17mm
Electric Motor	110v 50Hz
Voltage (v)	110
Amperage	11.4 Amp
Power (Hp – kW)	0.75hp
Cutter Speed (rpm)	2850
Time to stop rotation	9 sec
Length (mm)	2700mm
Width (mm)	210mm
Height (mm)	290mm
Flexible Inner Shaft Diameter	16mm
Life Expectancy of Cutter Heads	50 hrs
Noise (process noise not inc ) (LwA SWL)	73.1
Vibration at Dumbell Handle (Leaf Cutters)	8.7
Vibration at Dumbell Handle (Cutter Wheels)	5.4
Vibration at Dumbell Handle (Wire Brush)	10.1

230v Electric

340.TN/S/220

Part Number	340.TN/S/220
IMPA Part Number	59.12.42
ISSA Part Number	55.077.02
Weight	34kg
Working Width	30
Cutting Width (Chipping Leaves)	30mm
Cutting Width (Cutter Wheels)	17mm
Electric Motor	230v 60Hz
Voltage (v)	230
Amperage	4.9 Amp
Power (Hp – kW)	0.75 – 0.56
Cutter Speed (rpm)	2850
Time to stop rotation	9 sec
Length (mm)	2700mm
Width (mm)	210mm
Height (mm)	290mm
Flexible Inner Shaft Diameter	16mm
Life Expectancy of Cutter Heads	50 hrs
Noise (process noise not inc ) (LwA SWL)	73.1
Vibration at Dumbell Handle (Leaf Cutters)	8.7
Vibration at Dumbell Handle (Cutter Wheels)	5.4
Vibration at Dumbell Handle (Wire Brush)	10.1

Consumables

Flexible Drive Shaft

Part no. 340.285

IMPA: 59.12.99

ISSA: 55.077.05

6 Cutter Head

Part no. 340.581

IMPA: 59.12.86

ISSA: 55.082.01

Heavy Duty Scaling Head

Part no. 340.550

IMPA: 59.12.75

ISSA: 55.078.01

6” Power Brush

Part no. 340.160

IMPA: 59.12.93

ISSA: 55.084.03

6” Twisted Knot Brush

Part no. 340.163

IMPA: 59.12.91

ISSA: 55.084.01

Crimped Wire Cup Brush

Part no. 340.166

IMPA: 59.12.97

ISSA: 55.084.07

Twisted Knot Cup Brush

Part no. 340.167

IMPA: 59.12.95

ISSA: 55.084.05
