- Removal of coatings, corrosion and other accumulated materials such as encapsulant paint.
- Slag removal and stress relieving welds.
- Cleaning mixers, formwork and machinery.
- Cleaning concrete for repair.
- Spot Repairs.
TVS Needle Scalers

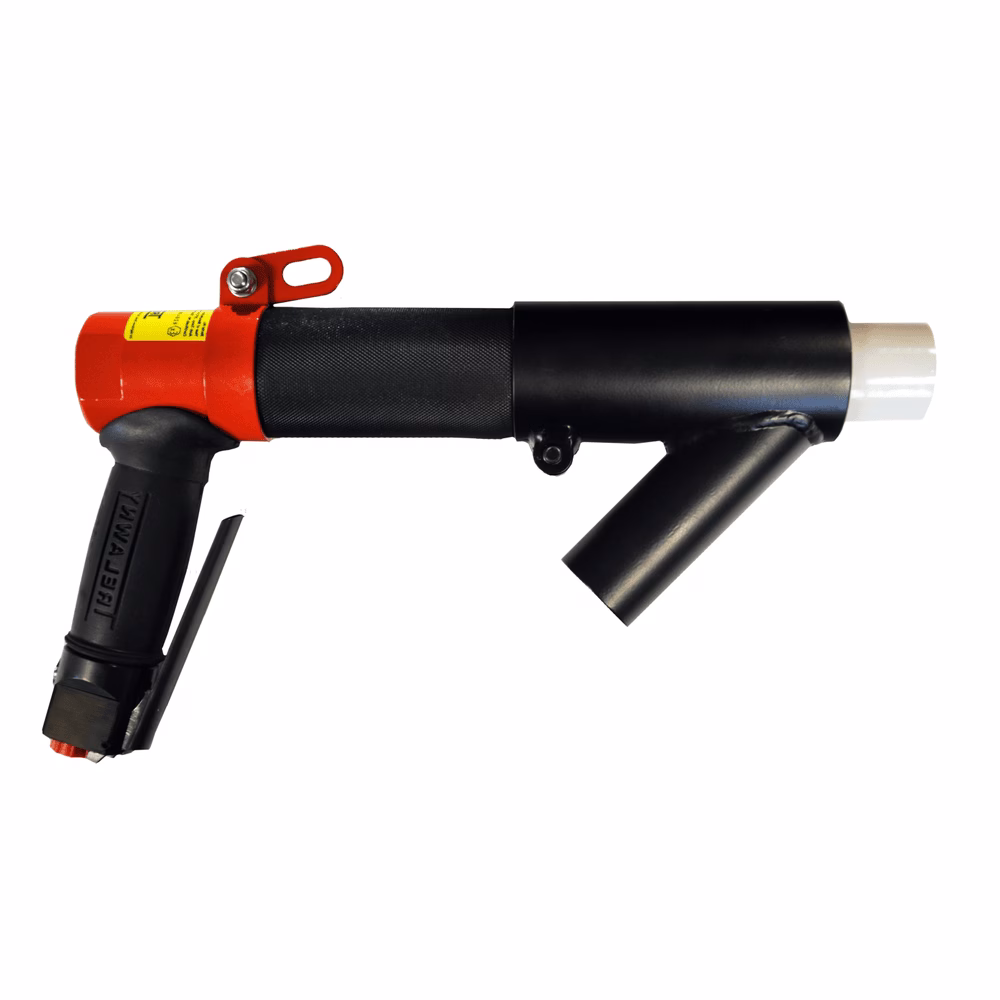

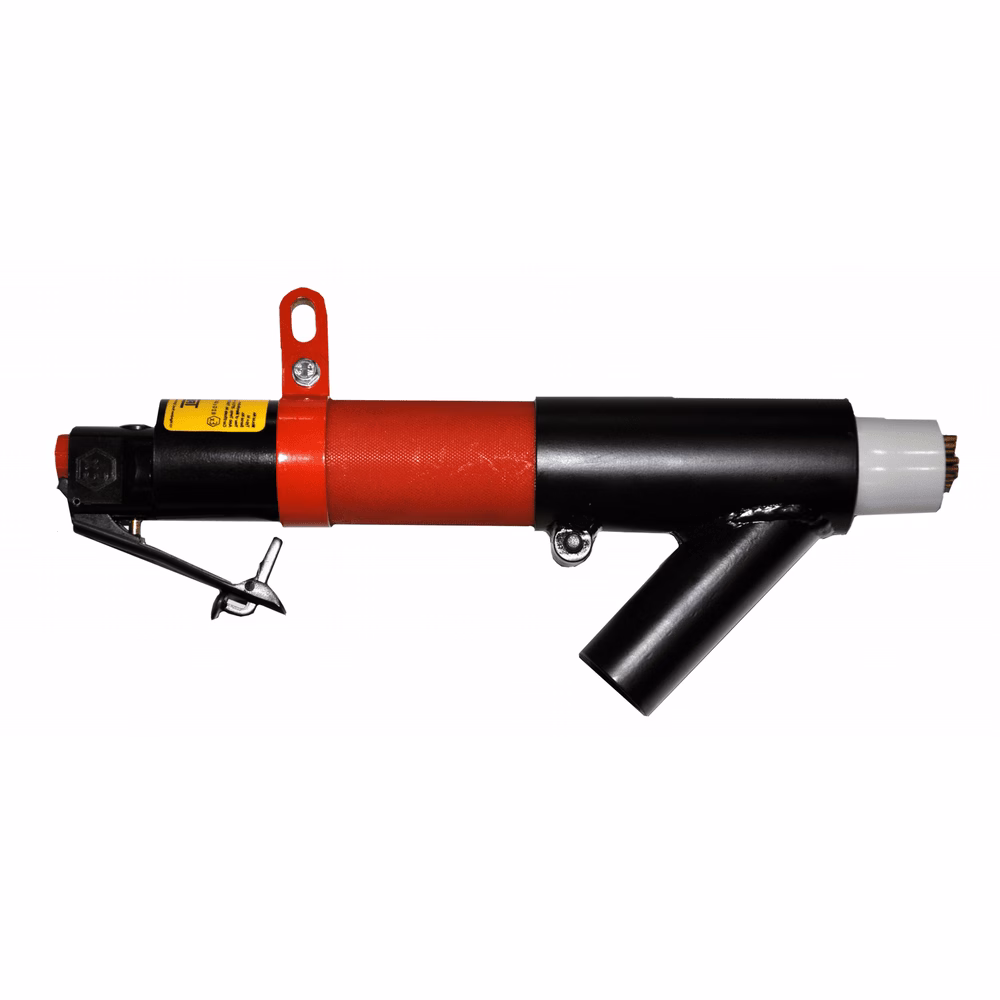

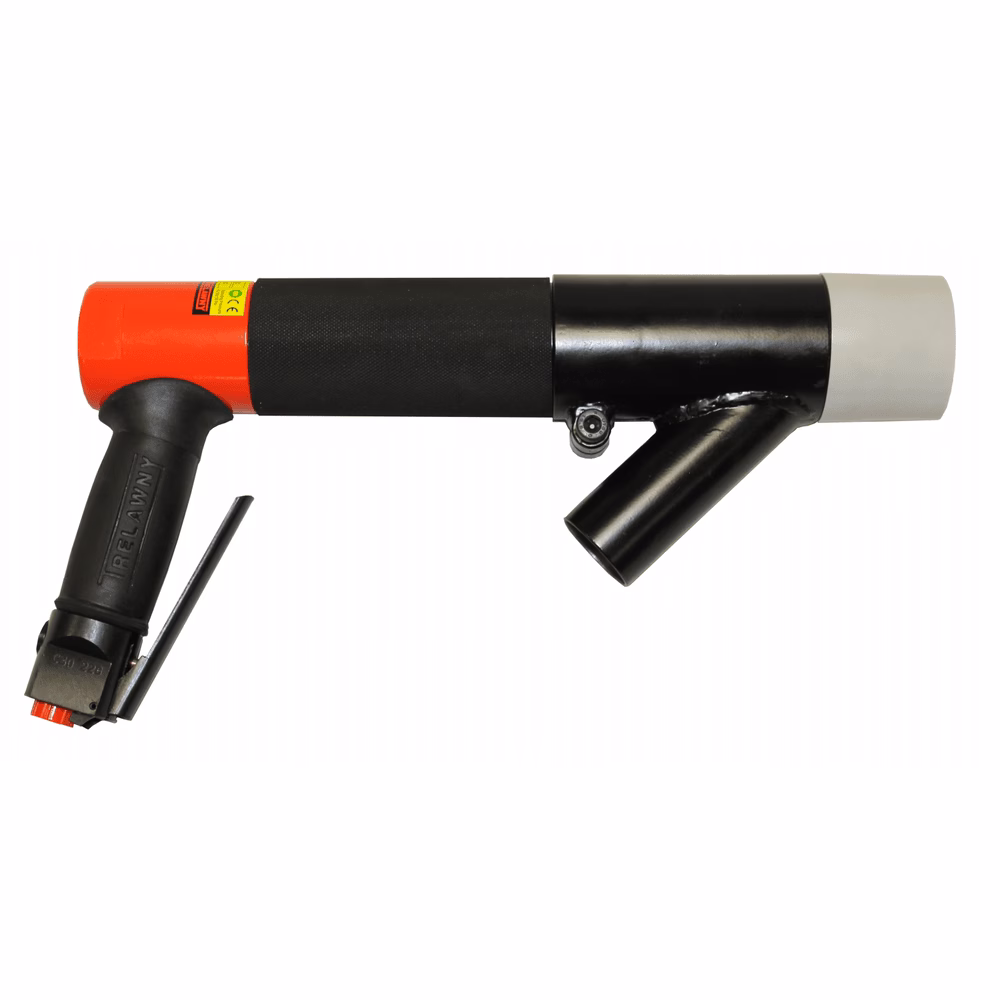

Trelawny Tool & Vacuum system (TVS) shrouded needle scalers are designed for the dust-free safe removal of hazardous materials such as lead, asbestos and silica dust. In combination with our K Series HEPA dust collectors they form a high performance safety focused system for hazardous abatement and remediation applications.
Contact us for your local distributor
Applications
Features
- Available in low-vibration models and B series tools.
- TVS Shrouds are retrofittable to all needle scaler models.
- Cuffs for flat edge and corner applications.
- Adjustable for access and maneuverability.
- Low air consumption.
- Simple maintenance with no special tools.
- Unique design, valveless and oversized pistons.
- Easily convert between needle and chisel attachments.
Download the Datasheets
Product Specifications
| Model | VL223 TVS NEEDLE SCALER | VL203 TVS NEEDLE SCALER | VL303 TVS NEEDLE SCALER |
|---|---|---|---|
| Part Number | 139.2103 | 139.2003 | 139.3003 |
| Handle Type | In-line | Pistol Grip | Pistol Grip |
| Needle Quantity | 19 | 19 | 28 |
| Piston Stroke mm | 11 | 11 | 20 |
| Blows Per Minute | 2400 | 2400 | 3000 |
| Air Consumption Metric (Imperial) | 1.89l/s (4.0cfm) | 1.89l/s (4.0cfm) | 2.6l/s (5.5cfm) |
| Air Inlet Size inch (BSP) | 1/4 | 1/4 | 1/4 |
| Overall Length mm | 370 | 340 | 370 |
| Weight kg | 2.35 | 2.7 | 3.51 |
| Sound Pressure Level Lpa db(A) | 77.7 | 77.7 | 95.06 |
| Sound Power Level Lwa db(A) | 90.7 | 90.7 | 109.5 |
| Vibration m/s² | 2.55 | 2.75 | 2.3 |
Accessories
VL203/VL223 Needle Scaler Service Kit 446.2003
446.2003
VL203Ex/VL223Ex Needle Scaler Service Kit 446.2003X
446.2003X
Service Kit for VL303 446.3003
446.3003
Service Kit for VL303 446.3003X
446.3003X
VL203/VL223 Chisel Scaler Service Kit 446.2203
446.2203
VL203Ex/VL223Ex Chisel Scaler Service Kit 446.2203X
446.2203X
VL303 Chisel Scaler Service Kit 446.3303
446.3303
VL303Ex Chisel Scaler Service Kit 446.3303X
446.3303X
TVS Vacuum Shroud to fit VL203/VL223 Needle Scalers 418.2003
418.2003
TVS Vacuum Shroud VL303 418.3003
418.3003
VL203/VL223 Chisel Attachment Kit 446.2120
446.2120
VL303 Chisel Attachment Kit 446.2130
446.2130
VL203/223 2B/BPG Corner cuff 731.2101
731.2101
VL203/223 2B/BPG Edge cuff 731.2102
731.2102
VL203/223 2B/BPG Flat cuff 731.2103
731.2103
VL303/3BPG Corner cuff 731.3101
731.3101

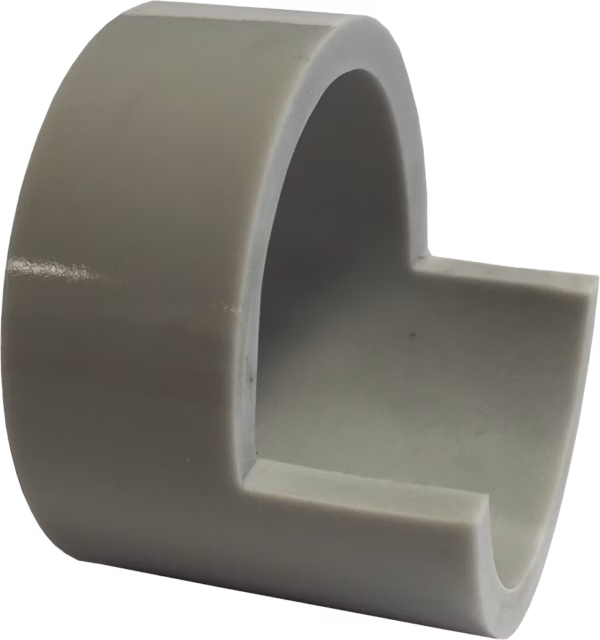

VL303/3BPG Edge cuff 731.3102
731.3102
VL303/3BPG Flat cuff 731.3103
731.3103
¼ BSP Inline Lubricator Assembly 458.1530
458.1530
¼" BSP Inline Lubricator 859.1530
859.1530
Whip Hose 421.3450
421.3450
Whip Check 815.5550
815.5550Consumables
Chisel Tip Needles 453.2110
453.2110 Chisel Tip Needles 443.2107
443.2107
Flat Tip Needles 453.1110
453.1110 Flat Tip Needles 443.1107
443.1107
Pointed Tip Needles 453.3110
453.3110 Pointed Tip Needles 443.3107
443.3107
Spark Resistant Beryllium Copper 403.1312
403.1312 Spark Resistant Beryllium Copper 403.1319
403.1319 Spark Resistant Beryllium Copper 403.1328
403.1328 Spark Resistant Beryllium Copper 453.1310
453.1310 Spark Resistant Beryllium Copper 443.1307
443.1307
Stainless Steel Needles 453.1207
453.1207 Stainless Steel Needles 443.1207
443.1207
Chisel 704.3101
704.3101
Chisel 704.3103
704.3103
Chisel 704.3107
704.3107
Chisel 704.3110
704.3110
Chisel 704.3205
704.3205
TVS Needle Scalers
