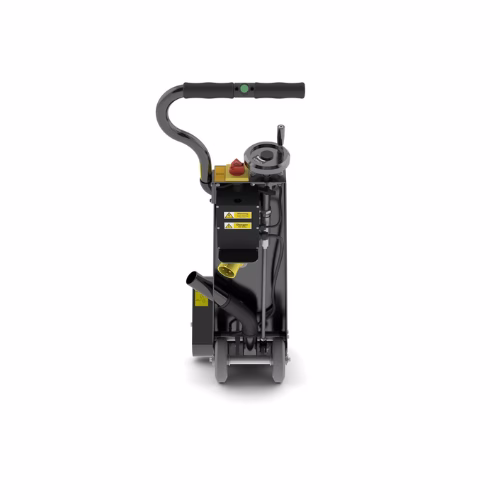

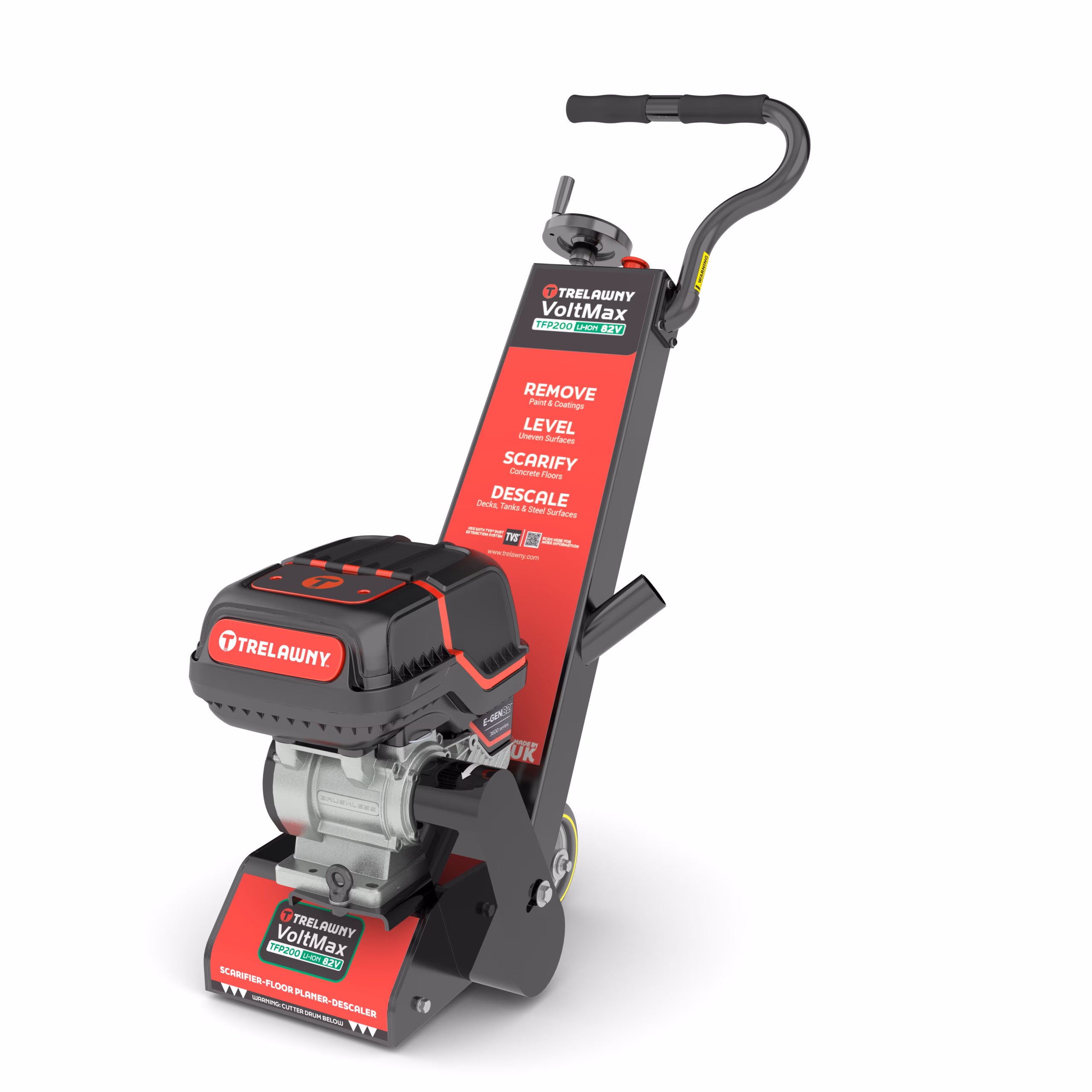

TFP200 Floor Scarifier

The TFP200 Scarifier provides precise surface preparation for concrete and steel surfaces, efficiently removing coatings, leveling, and texturing. Its rigid steel chassis guarantees a strong, stable machine ideal for accurate surface work. With a wide range of attachments available, it adapts to multiple applications. Additionally, a battery-powered option is offered, utilizing the Honda eGX combined motor to ensure zero emissions and enable access to difficult-to-reach areas.

Enquire now

Or find a distributor

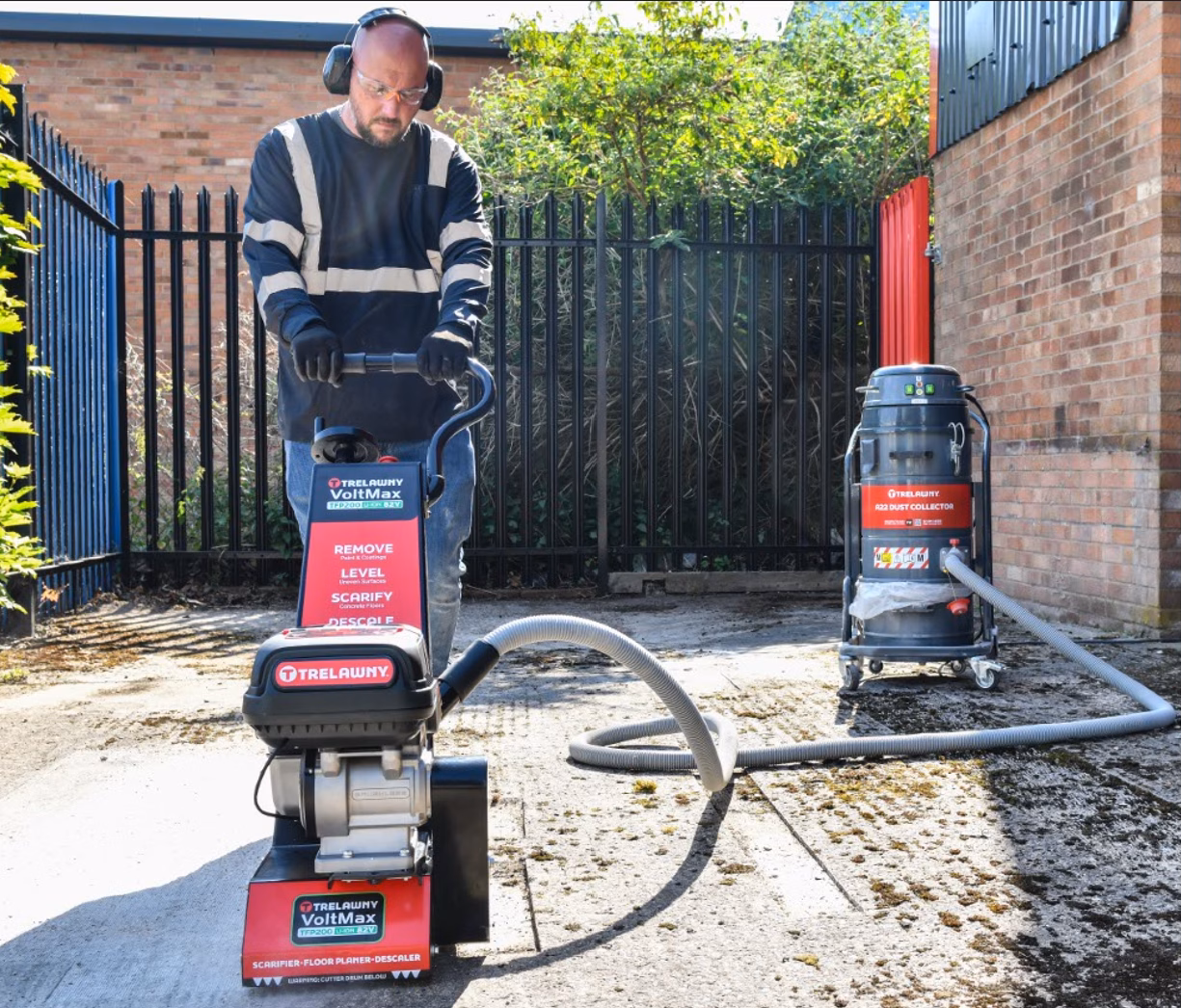

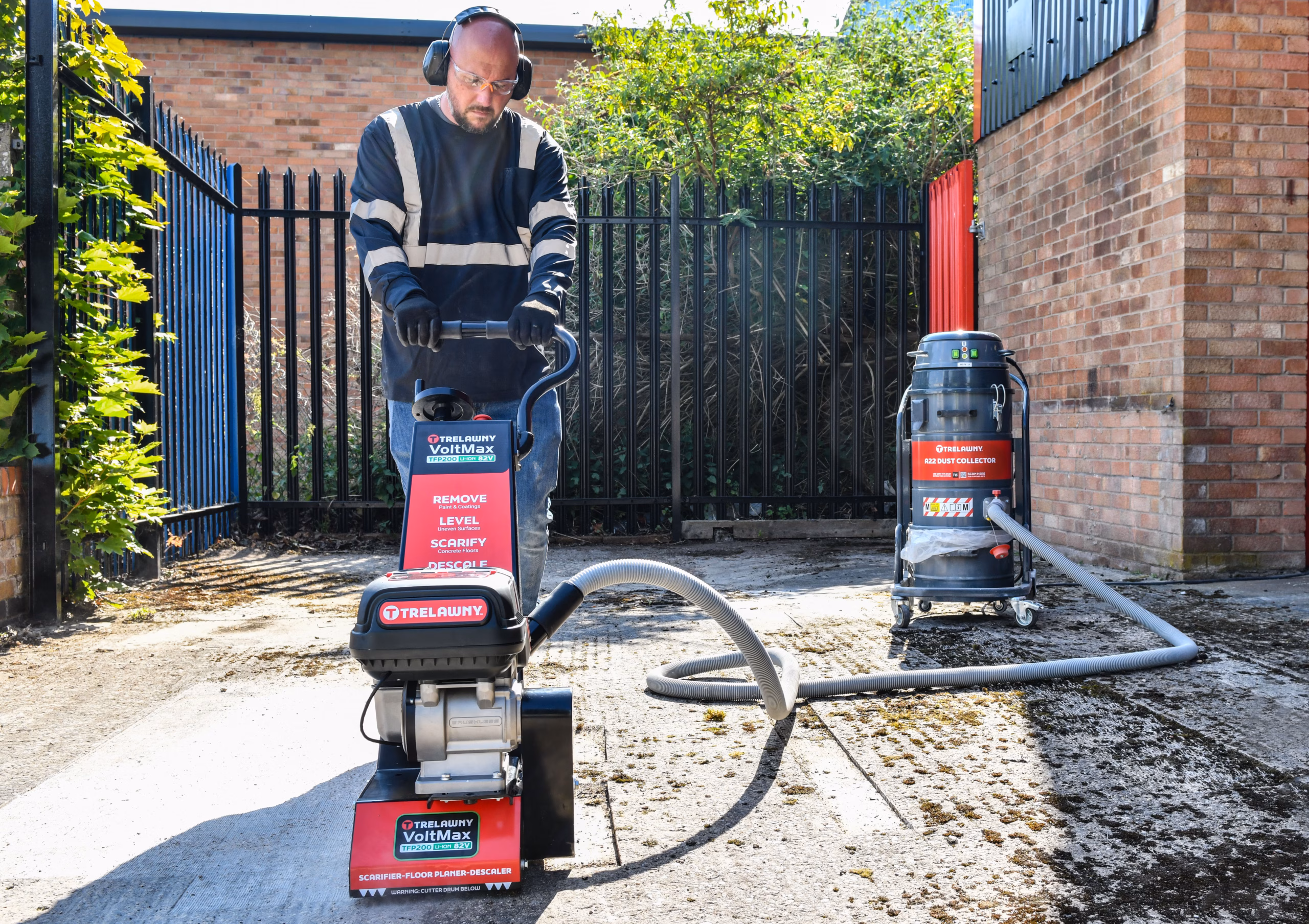

Compatible with Trelawny Vacuum systems

Applications

Levelling and removal of hard materials such as concrete and screeds.
Removing painted lines.
Grooving and texturing concrete.
Removal of coatings and scale from steel surfaces.

Features

Production rates up to 25m² per hour.
Adjustable hand-wheel for depth control.
Angled TVS® dust port for virtually dust free working.
Isolation safety switch to ensure operator safety.
Quick change cutter drum and consumables.

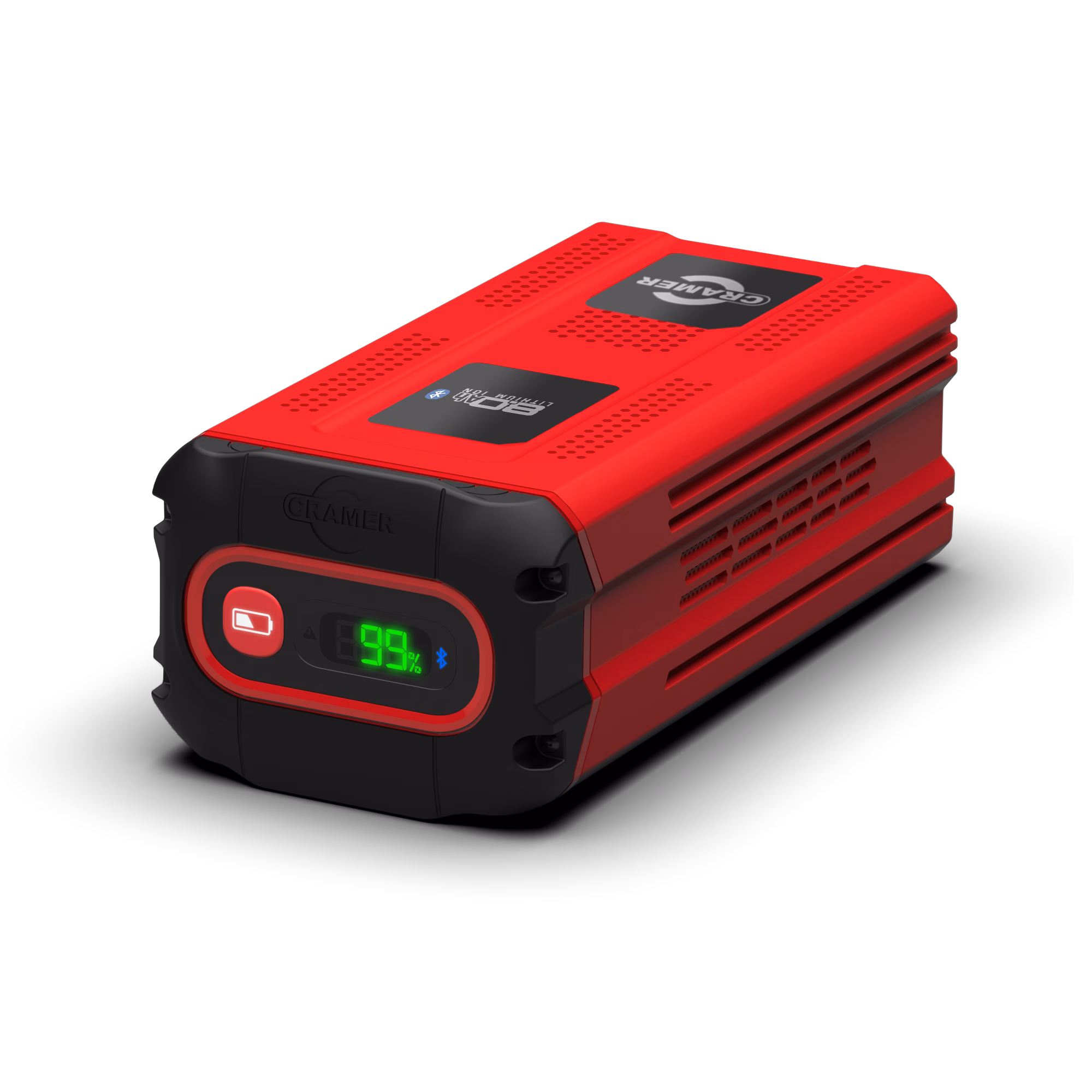

Rechargeable Lithion-Ion battery pack.

Key specifications

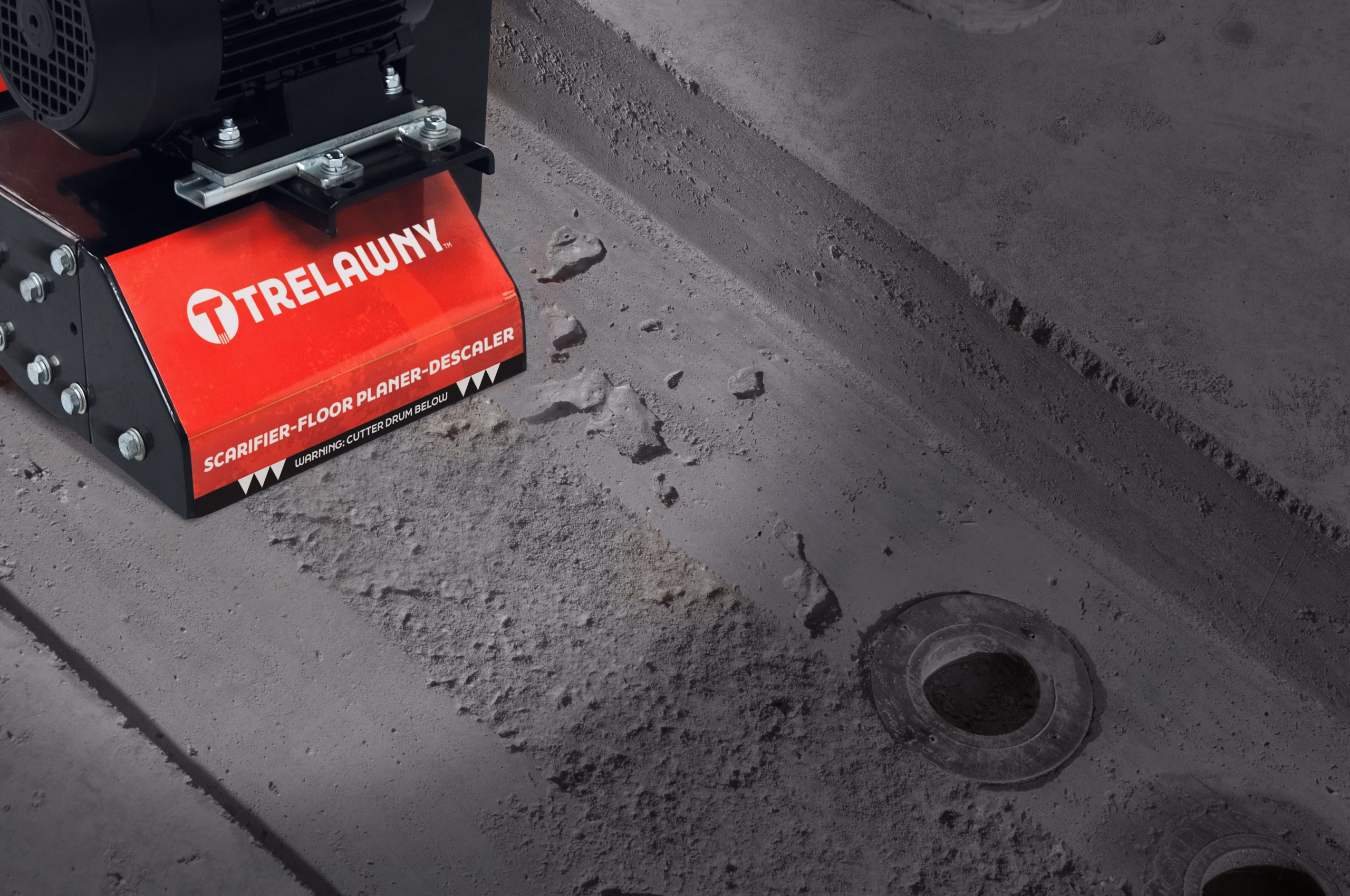

TFP200 Petrol

320.2400T

Part Number	320.2400T
Height (mm)	900
Width	350
Length (Working Position)	900
Cutting width (Dependent on Cutters)	195
Cutter head speed	1833 rpm
Working distance from wall (mm)	55
Weight (Dependent on power unit)	64kg
Engine Type	Honda GX160 Petrol
Petrol Power unit	5.5hp Honda
Approximate Fuel Consumption	1.32 litre per hour
Power (HP- kW)	5.5 – 4.1
Vibration Levels	6.9
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Petrol Engine)
TCT Cutters (concrete)	6.9m/s2 (K=+1.25m/s2)
TCT Cutters (steel)	7.6m/s2 (K=+0.46m/s2)
Star Cutters (concrete)	8.2m/s2 (K=+2.62m/s2)
Star Cutters (steel)	9.5m/s2 (K=+0.65m/s2)
Beam Cutters (concrete)	13.0m/s2 (K=+1.42m/s2)
Beam Cutters (steel)	12.2m/s2 (K=+1.05m/s2)
Milling Cutters (concrete)	9.5m/s2 (K=+1.26m/s2)
Milling Cutters (steel)	12.6m/s2 (K=+1.36m/s2)
Wire Brush (concrete)	7.6m/s2 (K=+2.49m/s2)
Wire Brush (steel)	11.9m/s2 (K=+3.16m/s2)

TFP200 110v TCT 50Hz

320.2402T

Part Number	320.2402T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall	55
Weight (Dependent on power unit)	71
Voltage (V)	110
Cycle (Hz)	50
Plug Size	32 Amp 3 pin
Transformer Size	3Kva
Cable Size (mm)	2.5-4 core
Cable Length (m)	15-30
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

TFP200 230v TCT

320.2404T

Part Number	320.2404T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall (mm)	55
Weight (Dependent on power unit)	71
Voltage (V)	230
Cycle (Hz)	50 / 60
Plug Size	16 Amp 3 Pin
Cable Size (mm)	Min 2.5 core
Cable Length (m)	30
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

TFP200 440v TCT

320.2406T

Part Number	320.2406T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall (mm)	55
Weight (Dependent on power unit)	71
Voltage (V)	440
Cycle (Hz)	50 / 60
Plug Size	16 Amp 5 Pin
Cable Size (mm)	Min 2.5 core
Cable Length (m)	30
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

TFP200 110v TCT 60Hz

320.2416T

Part Number	320.2416T
Height (mm)	900mm
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall	55
Weight (Dependent on power unit)	71
Voltage (V)	110
Cycle (Hz)	50
Plug Size	32 Amp 3 pin
Transformer Size	3Kva
Cable Size (mm)	2.5-4 core
Cable Length (m)	15-30m
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

TFP 200 Air TCT

320.2412T

Part Number	320.2412T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1528
Working distance from wall	55mm
Weight (Dependent on power unit)	62
Power (HP- kW)	3.5 – 2.6
Vibration Levels	4.4
Air Consumption (lps – cfm)	78 -165
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

Consumables

Drum Assembly TCT Cutters

Part no. 320.1020ST

Drum Assembly Star Cutters

Part no. 320.1020SS

Drum Assembly Beam Cutters

Part no. 320.1020SB

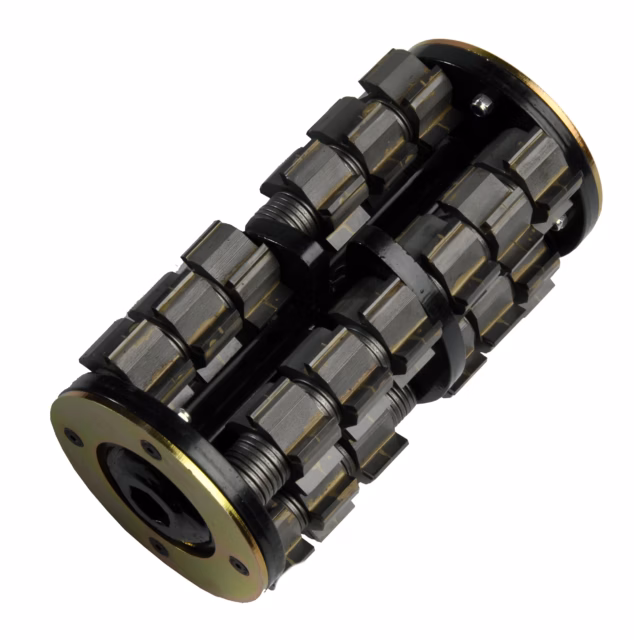

Drum Assembly Milling Cutters

Part no. 320.1020SM

Drum Assembly Twisted Knot Wire Brush

Part no. 320.9620

IMPA: 59.22.45

ISSA: 55.096.13

Drum Assembly Crimped Wire Brush

Part no. 320.9610

IMPA: 59.22.44

ISSA: 55.096.14

Tungsten Carbide Tipped Cutters

Part no. 320.5500

IMPA: 59.22.41

ISSA: 55.096.10

Tungsten Carbide Tipped Cutters

Part no. 320.7006

Star Cutters

Part no. 320.3658

IMPA: 59.22.42

ISSA: 55.096.11

Beam Cutters

Part no. 320.5120

IMPA: 59.22.43

ISSA: 55.096.12

Milling Cutters

Part no. 320.5600

Spacers

Part no. 320.4140

Cutter Shafts 12mm Diameter

Part no. 320.0020

IMPA: 59.22.49

ISSA: 55.096.18

Heavy Duty Drum

Part no. 320.002H

IMPA: 59.22.47

ISSA: 55.096.16

View moreView less

Accessories

110v Power Cable

20m

Part no. 669.3121

230v Power Cable

20m

Part no. 669.3122

380v-440v Power Cable

20m

Part no. 669.3124

¾’’ Air Hose Complete with couplings

15m length

Part no. 843.0752

View moreView less
