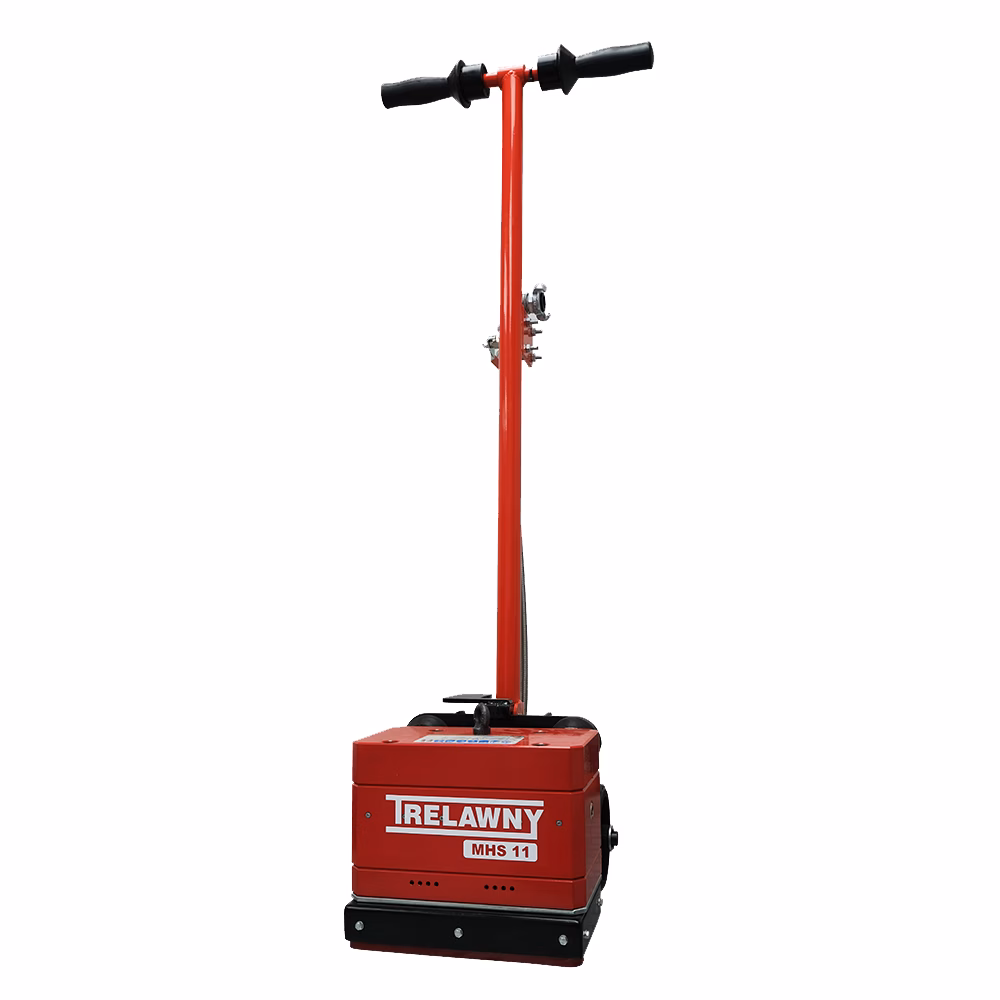

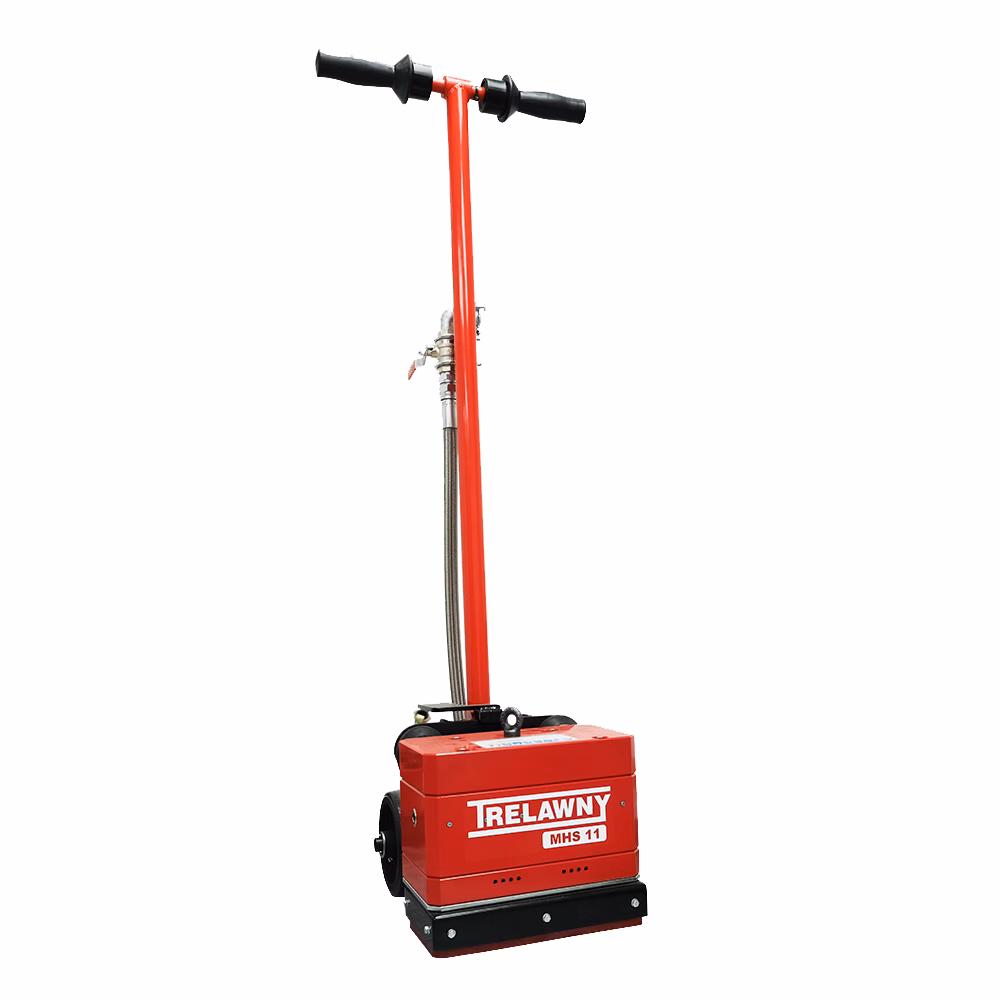

MHS11 Floor Scabbler

The MHS11 introduces a new concept in pneumatic floor scabblers. Using smaller heads with a 70% increase in BPM (Blows Per Minute) and a 30% reduction in air consumption, the MHS11 maximises productivity, efficiency, value and ergonomics, without compromise. Its is the perfect machine for fast removal of laitance, level reduction and profiling for new concrete and thick screeds and sealants.
Production rates in excess 30 m² per hour.
Enquire now
Or find a distributor
Low vibration options available
Compatible with Trelawny Vacuum systems
Applications

Laitance Removal.
Reduction of uneven surfaces.
Roughening and keying without damaging the substrate.
Removal of thick coatings.
Removal of contaminated materials and coatings with safe containment via standard fit Trelawny TVS® vacuum shroud.
Features

Production rates up to 30 m² per hour.
Easily to replace scabbling heads.
The handle is vibration-damped which increases productivity and reduce the risk to operators of vibration-related injuries.
Heavy-duty body enables greater control, performance and long service life.

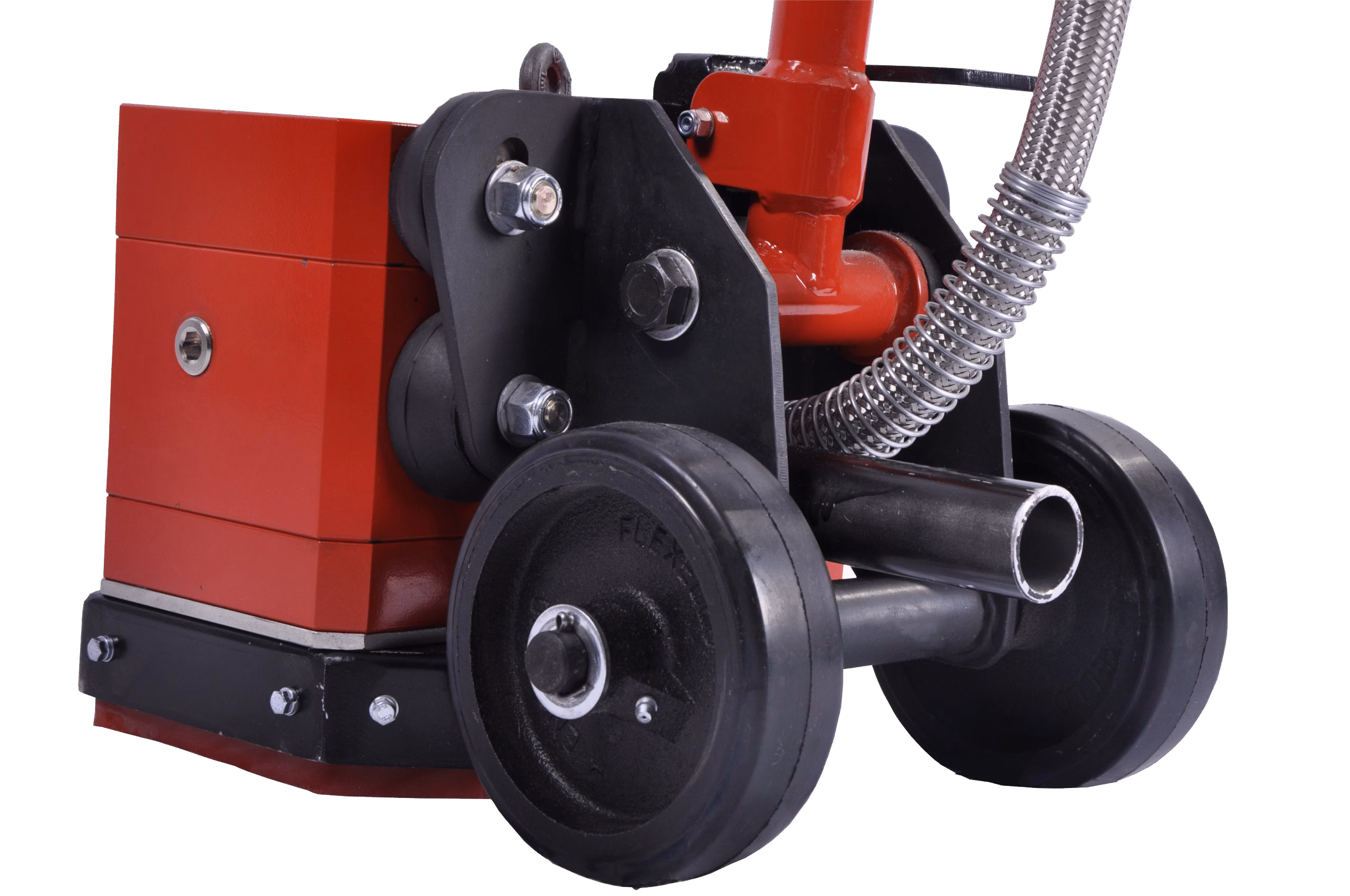

Integrated TVS® vacuum shroud allows the connection of an industrial dust collector for collecting nuisance and hazardous dust.
Key specifications

MHS11 One Piece Bush Piston
159.6050
Part Number	159.6050
Weight (kg)	114
Length (mm)	1100
Height (mm)	970
Width (mm)	720
Width at Handle Bar / Block Width	720 (28.34”) / 346 (13.62”)
Cutting Width (mm)	290 (11.4”)
Closest cut to wall	25 (.98”)
Blows Per Min (BPM)	1300 x 5
Air Hose Bore (Inlet Coupling 3/4″ BSP claw)	19mm (0.75”)
Removal Rate	30m 2/hr (323ft 2/hr)
Depth of cut (Average) *	3.0mm (1/8””), dependent on operator
Air Consumption (lps – cfm)	38 – 80
Noise Level (db (A))	94.7
Vibration level (Aeq m/s2)	16.5
Vibration level (Aeq m/s2) (secondary	23.1
Consumables

One Piece Piston
Part no. 612.0125
Brush Seal
Part no. 614.5301
View moreView less
Accessories

MHS11 Service Kit
Part no. 446.6000
Whip Hose & Oiler Assembly
Part no. 458.1580
¾’’ BSP Inline Lubricator
Part no. 859.1580
¾’’ Air Hose Complete with couplings
15m length
Part no. 843.0752
Whip Check
Part no. 815.5550
ISSA: 55.091.73
Vacuum Shroud
Part no. 437.0120
View moreView less
