Long Reach Scrapers & Chisel Scalers

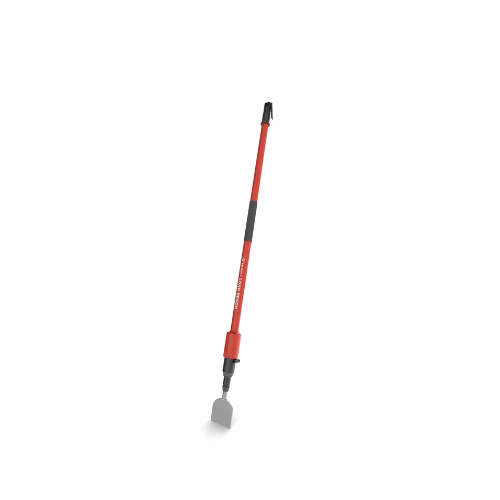

The Trelawny Long Reach Standard Steel Scaler is ideal for overhead work and accessing hard-to-reach areas. The aluminium “Lite” version combines a simple, robust design with lightweight construction, providing reliable and long-lasting performance for various tasks.

Applications

Available with a wide selection of chisels and blades, they are perfect for renovation, flooring contractors, roofing, demolition and asbestos abatement.
Removal of unwanted residues and other adhesives.
Removal of paint and coatings.
Rust removal.

Features

Interchangeable needle and chisel attachments.
Available in 2ft, 4ft, 5ft and 6ft lengths Long reach tools eliminate the need for manual labour.
Requires a small portable compressor.
Three tools in one: chipping, scraping, de-scaling.
Long Reach Chisel tools supplied without attachments.

Downloads

Product Specifications


Model	2ft Chisel	4ft Chisel	5ft Chisel	6ft Chisel	4ft LITE Chisel	5ft LITE Chisel	6ft LITE Chisel	2ft Chisel Scaler c/w Needle Attachment Kit	4ft Chisel Scaler c/w Needle Attachment Kit	5ft Chisel Scaler c/w Needle Attachment Kit	6ft Chisel Scaler c/w Needle Attachment Kit	4ft LITE Chisel Scaler c/w Needle Attachment Kit	5ft LITE Chisel Scaler c/w Needle Attachment Kit	6ft LITE Chisel Scaler c/w Needle Attachment Kit
Part Number	136.3200	136.3400	136.3500	136.3600	136.3498	136.3598	136.3698	137.3200	137.3400	137.3500	137.3600	137.3498	137.3598	137.3698
Chisel Shank	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex	5/8” Hex
Piston Stroke (mm)	39	39	39	39	39	39	39	39	39	39	39	39	39	39
Blows Per Minute (BPM)	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200
Air Consumption (@ 6.2bar)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)	2.1lps (4.5cfm)
Air Inlet Size (BSP)	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4
Overall Length (mm)	740	1100	1400	1710	1100	1400	1710	740	1100	1400	1710	1100	1400	1710
Weight (kg)	4.8	5.7	6.25	6.9	3.7	4.05	4.55	4.8	5.7	6.25	6.9	3.7	4.05	4.55
Noise Level Lpa db(A)	81.3	80.5	82.4	84.3	85.8	81.2	84.2	103.1	103.5	103	103.5	104.7	104.5	104.5
Noise Level Lwa db(A)	84	84	86	116	89	89	116	116.1	117.7	116	116.5	116.5	117.5	117.5
Vibration (Primary)	4.1	8.9	11.4	7.7	13	10.3	10.4	15.3	11.7	12.3	12.5	25.1	19.3	16.2
