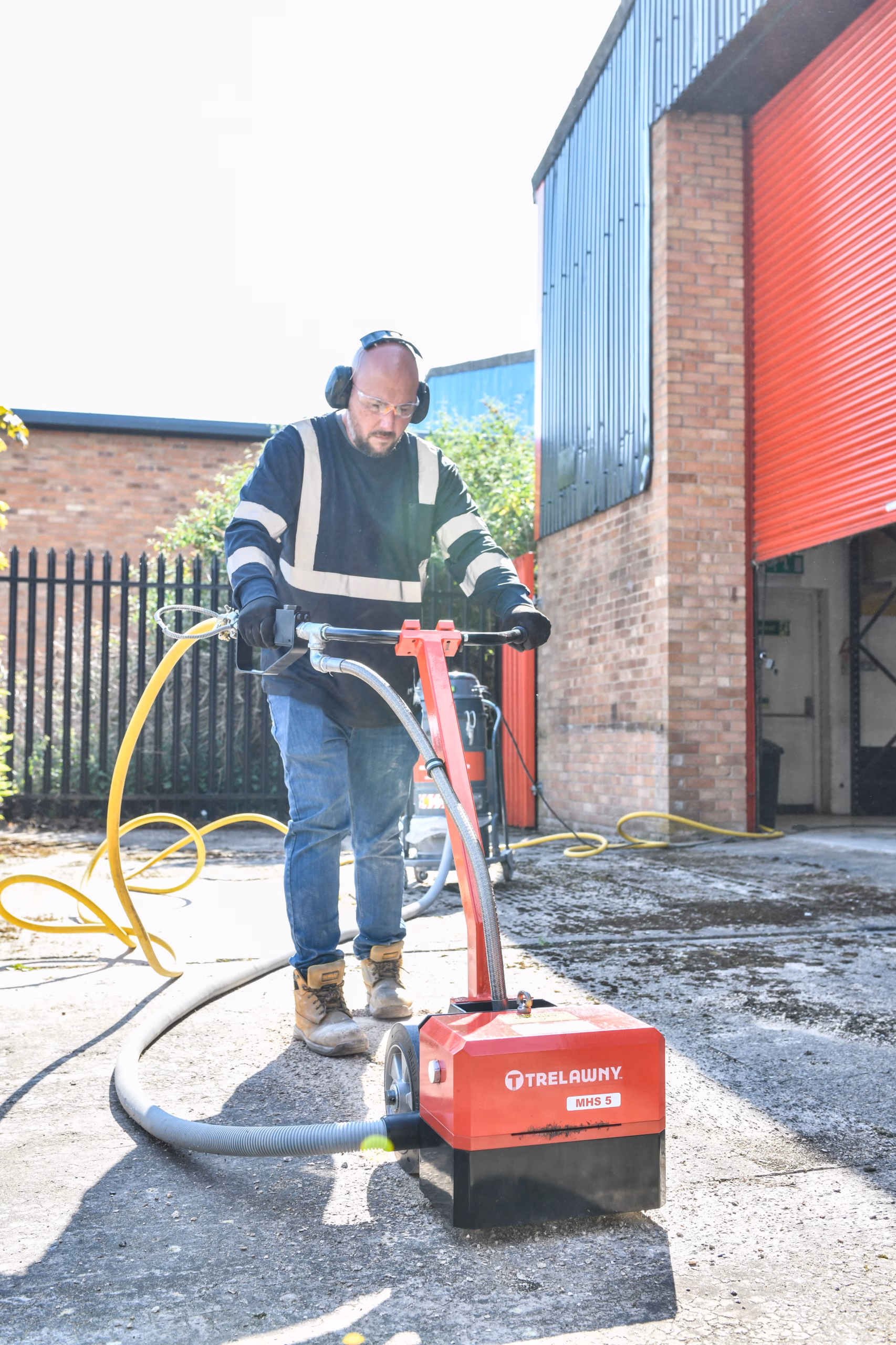

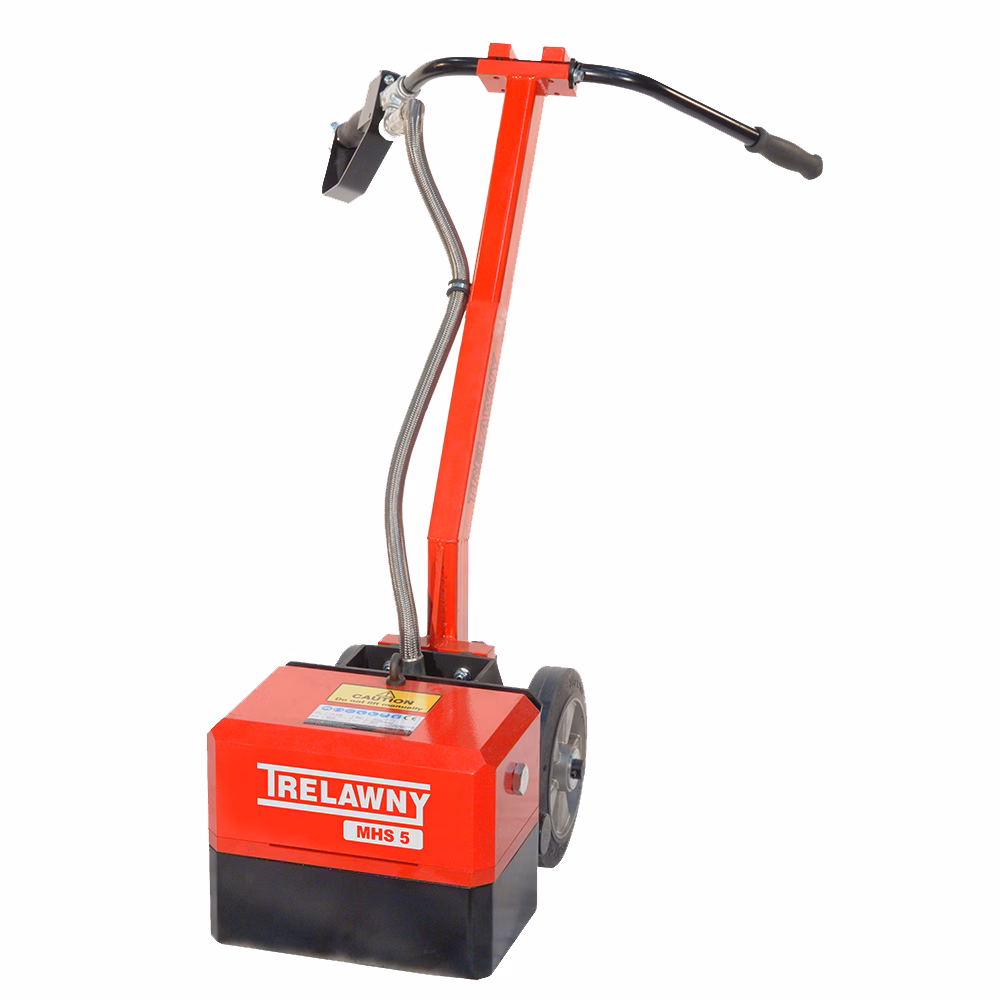

MHS5 Floor Scabbler
The MHS5 is the go-to heavy-duty floor scabbler for rapid level reduction. Equipped with five 50mm (2”) carbide-tipped heads, it delivers 1,300 powerful blows, each creating a heavy key for fresh concrete and overlay applications. This tool ensures efficient and effective surface preparation for optimal results.
Compatible with Trelawny Vacuum systems
Applications
- Removal of thick coatings.
- Fast reduction of uneven surfaces.
- Suitable for surface demolition.
- Laitance Removal.
Features
- Production rates up to 40 m² per hour.
- Easily to replace scabbling heads.
- Height adjustable handle for operator comfort.
- Heavy-duty body enables greater control, performance and long service life.
- Integrated TVS® vacuum shroud allows the connection of an industrial dust collector for collecting nuisance and hazardous dust.
Key specifications
MHS5 Floor Scabbler 5 Point Head
159.5050
| Part Number | 159.5050 |
| Weight (kg) | 114 |
| Length (mm) | 1100 |
| Height (mm) | 970 |
| Width (mm) | 720 |
| Width at Handle Bar / Block Width | 720 (28.34”) / 346 (13.62”) |
| Cutting Width (mm) | 290 (11.4”) |
| Closest cut to wall | 25 (.98”) |
| Blows Per Min (BPM) | 1300 x 5 |
| Air Hose Bore (Inlet Coupling 3/4″ BSP claw) | 19mm (0.75”) |
| Removal Rate | 30m 2/hr (323ft 2/hr) |
| Depth of cut (Average) * | 3.0mm (1/8””), dependent on operator |
| Air Consumption (lps – cfm) | 38 – 80 |
| Noise Level (db (A)) | 94.7 |
| Vibration level (Aeq m/s2) | 16.5 |
| Vibration level (Aeq m/s2) (secondary | 23.1 |
Consumables
Scabbler Head 9 Point Bush
Part no. 441.5369
Scabbler Head 5 Point Bush
Part no. 441.5359
Scabbler Head Cruciform
Part no. 441.5360
View moreView less
Accessories
Whip Hose & Oiler Assembly
Part no. 458.1580
¾’’ BSP Inline Lubricator
Part no. 859.1580
¾’’ Air Hose Complete with couplings
15m length
Part no. 843.0752
Whip Check
Part no. 815.5550
ISSA: 55.091.73
View moreView less
