SH1 & SH3 Handheld Scabblers

Trelawny’s range of single and triple head scabbling hammers (SH) features our lowest vibration technology, making them ideal for roughing and preparing concrete in small areas, such as concrete joints. These tools offer efficient performance with minimal vibration, ensuring comfort and precision during use.

Enquire now

Or find a distributor

Low vibration options available

Compatible with Trelawny Vacuum systems

Applications

Preparing joints and cracks.
Removal of laitance on concrete surfaces.
Removing existing coatings.
Reduction and levelling.
Roughening and exposing aggregate.

Features

Easy to change cutter heads minimise downtime.
Ergonomic handle for ease of use – Also available with a short handle for tight areas.
Simple and robust design for easy maintenance.

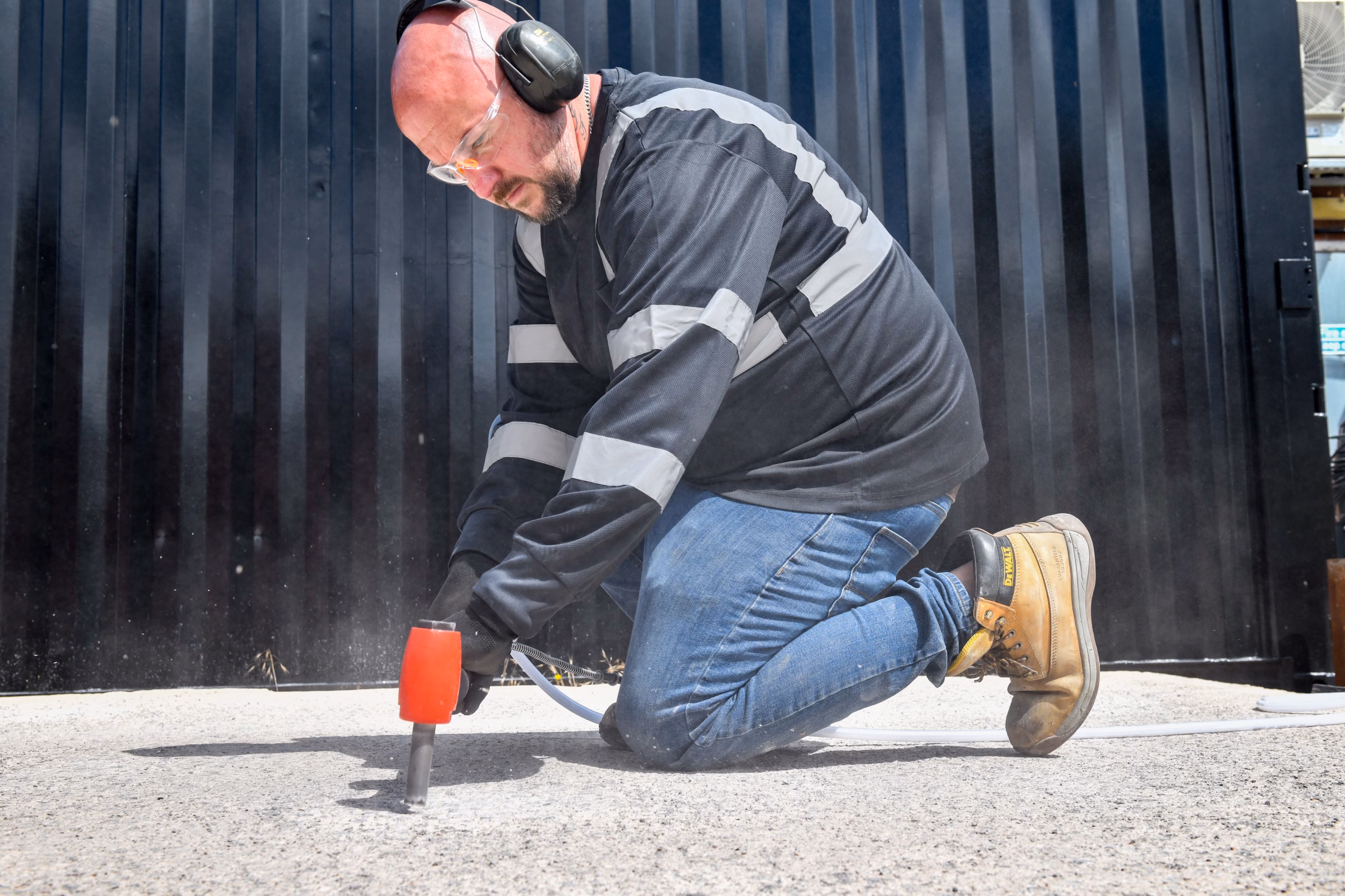

The VLSH1 Vibro-Lo™ – low vibration model helps reduce the risk to operators of vibration-related injuries..

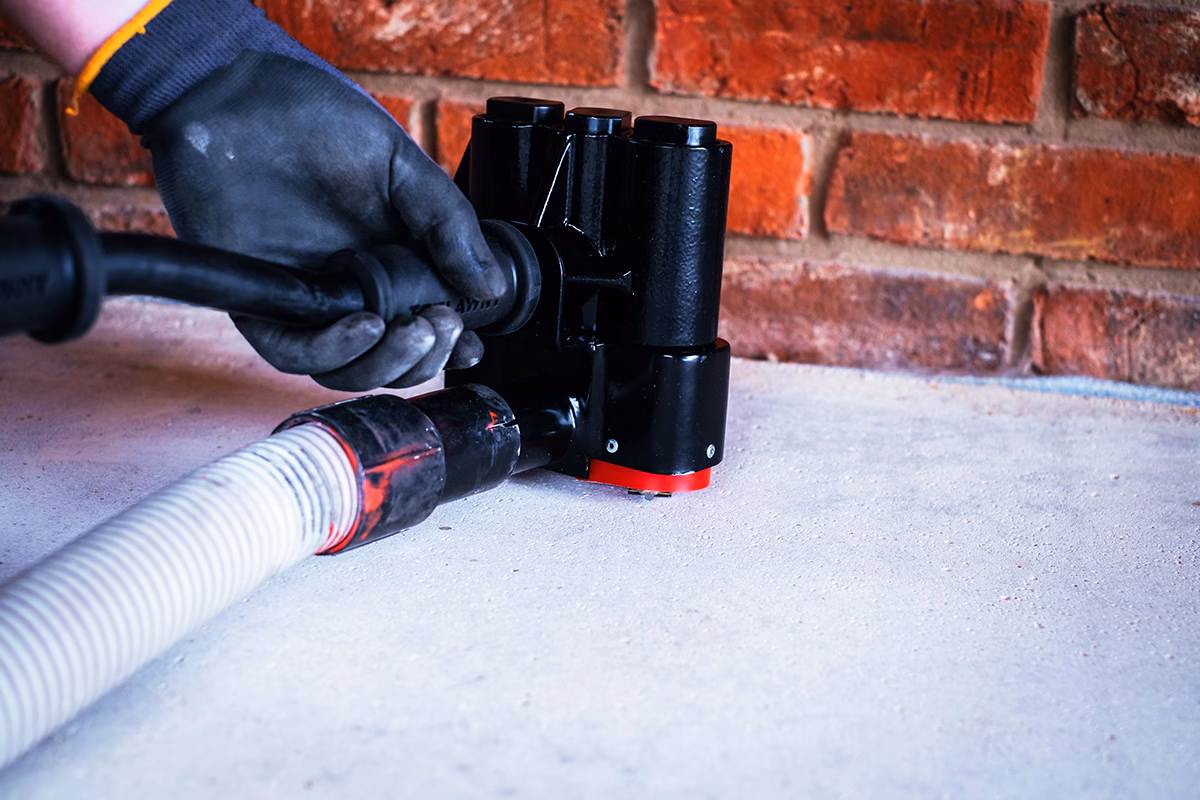

Optional TVS® vacuum shroud for the SH3 allows the connection of an industrial dust collector for collecting nuisance and hazardous dust for the protection of operators and the environment.

Key specifications

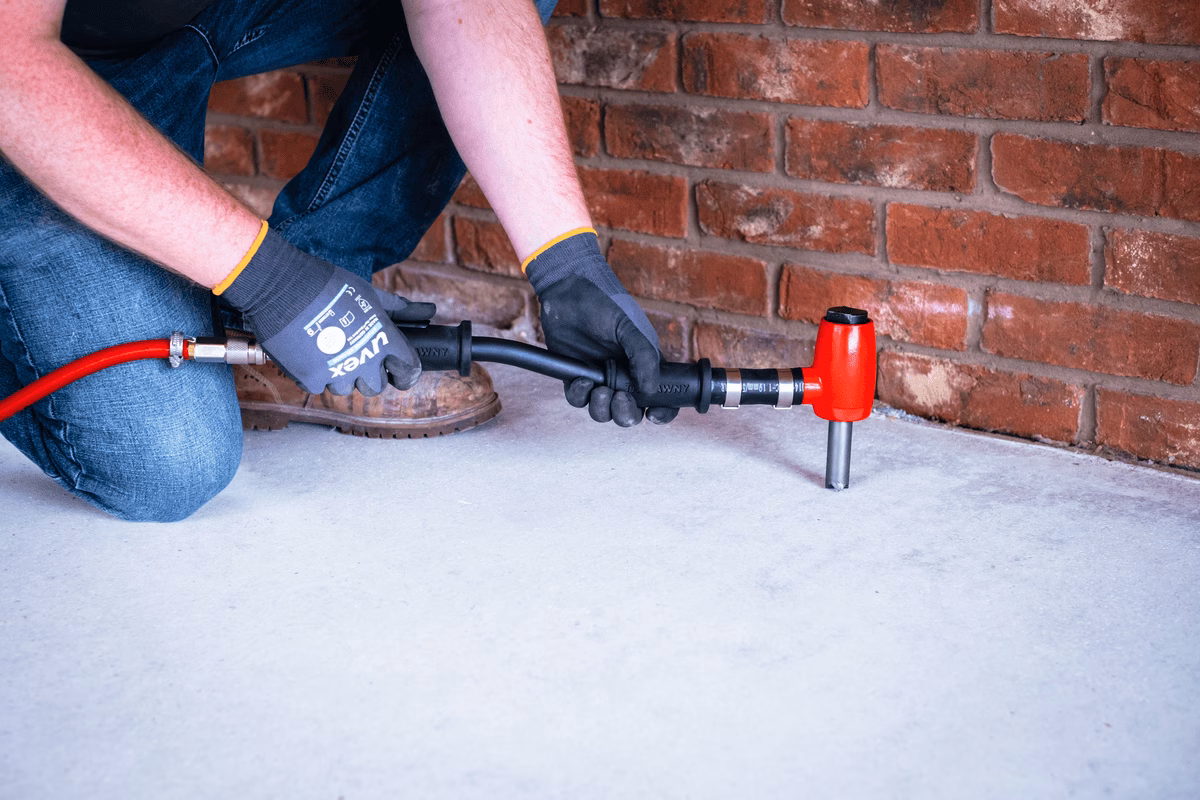

SH1 Low Vibration Single Scabbler Cruciform Head

196.5100

Part Number	196.5100
Weight (kg)	2.5
Length (mm)	515
Working Height (mm)	160
Blows Per Min (BPM)	2900
Air Consumption (lps – cfm)	4.25 – 9
Air Pressure	6.2 bar (90 psi)
Air Inlet	3/8″ NPT (c/w 3/8″ BSP Adapter)
Noise Level (db (A))	91
Noise Level (bD (A))	104.5
Vibration level (Aeq m/s2) Primary	4.5
Vibration level (Aeq m/s2) Secondary	9.4
Piston Diameter (mm)	27
Piston Length (mm)	111.75
Piston Stroke (mm)	26.5

SH1 Low Vibration Single Scabbler Bush Hammer Head

196.5105

Part Number	196.5105
Weight (kg)	2.5
Length (mm)	515
Working Height (mm)	160
Blows Per Min (BPM)	2900
Air Consumption (lps – cfm)	4.25 – 9
Air Pressure	6.2 bar (90 psi)
Air Inlet	3/8″ NPT (c/w 3/8″ BSP Adapter)
Noise Level (db (A))	91
Noise Level (bD (A))	104.5
Vibration level (Aeq m/s2) Primary	4.5
Vibration level (Aeq m/s2) Secondary	9.4
Piston Diameter (mm)	27
Piston Length (mm)	111.75
Piston Stroke (mm)	26.5

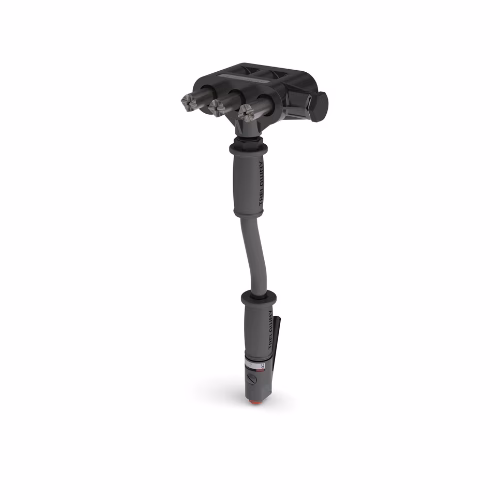

SH3 Triple Scabbler Side Handle Cruciform Head

153.5200

Part Number	153.5200
Weight (kg)	5.2
Length (mm)	450
Working Height (mm)	160.00
Blows Per Min (BPM)	2400 x 3
Air Consumption (lps – cfm)	7 – 15
Air Pressure	6.2 bar (90 psi)
Air Inlet	3/8″ NPT (c/w 3/8″ BSP Adapter)
Noise Level (db (A))	98
Noise Level (bD (A))	111.3
Vibration level (Aeq m/s2) Primary	8.7
Vibration level (Aeq m/s2) Secondary	13.5
Piston Diameter (mm)	27
Piston Length (mm)	111.75
Piston Stroke (mm)	26.5

SH3 Triple Scabbler Side Handle Bush Hammer Head

153.5250

Part Number	153.5250
Weight (kg)	5.2
Length (mm)	450
Working Height (mm)	160
Blows Per Min (BPM)	2400 x 3
Air Consumption (lps – cfm)	7 – 15
Air Pressure	6.2 bar (90 psi)
Air Inlet	3/8″ NPT (c/w 3/8″ BSP Adapter)
Noise Level (db (A))	98
Noise Level (bD (A))	111.3
Vibration level (Aeq m/s2) Primary	8.7
Vibration level (Aeq m/s2) Secondary	13.5
Piston Diameter (mm)	27
Piston Length (mm)	111.75
Piston Stroke (mm)	26.5

SH3 Triple Scabbler w. Shroud Cruciform Head Short Handle

139.5390

Part Number	139.5390
Weight (kg)	5.2
Length (mm)	450
Working Height (mm)	160.00
Blows Per Min (BPM)	2400 x 3
Air Consumption (lps – cfm)	7 – 15
Air Pressure	6.2 bar (90 psi)
Air Inlet	3/8″ NPT (c/w 3/8″ BSP Adapter)
Noise Level (db (A))	98
Noise Level (bD (A))	111.3
Vibration level (Aeq m/s2) Primary	8.7
Vibration level (Aeq m/s2) Secondary	13.5
Piston Diameter (mm)	27
Piston Length (mm)	111.75
Piston Stroke (mm)	26.5

SH3 Triple Scabbler w. Shroud Cruciform Head

139.5392

Part Number	139.5392
Weight (kg)	5.2
Length (mm)	450
Working Height (mm)	160
Blows Per Min (BPM)	2400 x 3
Air Consumption (lps – cfm)	7 – 15
Air Pressure	6.2 bar (90 psi)
Air Inlet	3/8″ NPT (c/w 3/8″ BSP Adapter)
Noise Level (db (A))	98
Noise Level (bD (A))	111.3
Vibration level (Aeq m/s2) Primary	8.7
Vibration level (Aeq m/s2) Secondary	13.5
Piston Diameter (mm)	27
Piston Length (mm)	111.75
Piston Stroke (mm)	26.5

Consumables

Single Piece Cruciform Piston

Part no. 612.5320

Single Piece Bush Piston

Part no. 612.5325

Brush Seal

Part no. 614.5301

View moreView less

Accessories

SH1 Service Kit

Part no. 446.1625

SH1 Service Kit

Part no. 446.1620

SH3 Service Kit (Cruciform Pistons)

Part no. 446.1630

SH3 Service Kit (Bush Pistons)

Part no. 446.1635

Whip Hose & Oiler Assembly

Part no. 458.1555

½’’ BSP Inline lubricator

Part no. 859.1555

Whip Hose

Part no. 421.3452

Whip Check

Part no. 815.5550

ISSA: 55.091.73

Vacuum Shroud

Part no. 437.5300

View moreView less
