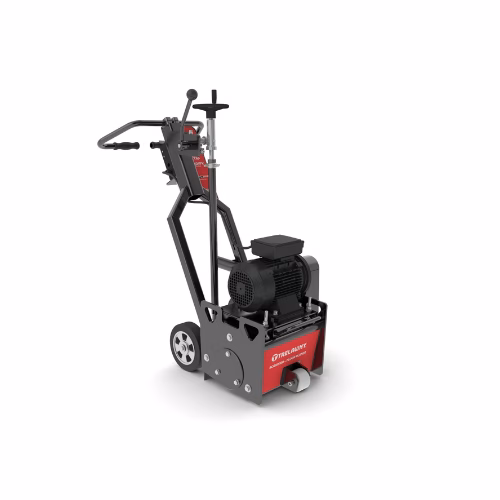

TFP260 Floor Scarifier
The TFP260 is a heavy-duty machine designed for medium to large jobs, offering exceptional performance with its increased weight and power. Its robust chassis and heavy-duty double web cutter drum make it highly effective for tackling even the toughest surface preparation tasks. The quick lift drum mechanism enhances control and safety for the operator, ensuring reliable operation and efficient results.
Compatible with Trelawny Vacuum systems
Applications
- Levelling and removal of hard materials such as concrete and screeds.
- Removing painted lines.
- Grooving and texturing concrete.
- Removal of coatings and scale from steel surfaces.
Features
- Production rates up to 35m² per hour.
- Tough 8mm welded steel construction for added weight and strength.
- Adjustable hand-wheel for depth control.
- Angled TVS® dust port for virtually dust free working.
- Quick change cutter drum and consumables.
- Isolation safety switch to ensure operator safety.
Key specifications
TFP260 Petrol
326.2400T
| Part Number | 326.2400T |
| Height (mm) | 1080 |
| Width | 480 |
| Length (mm) | 1010 |
| Cutting Width | 250 |
| Cutter head speed (drum rpm on manual) | 1850 |
| Working Distance from Wall (mm) | 75 |
| Weight (kg) | 147.5 |
| Engine Type | Honda GX240 |
| Approximate Fuel Consumption | 2.0 litre per hour |
| Power (HP- kW) (Power unit in manual) | 8 – 6 |
| Noise (LwA) | 102.5dB (A) |
| Vibration Levels | 8.8 m/s2 (K= +40% -0% |
| Maximum Cutting Depth (mm) | 6 |
| Vacuum Take off Diameter (mm) | 50 |
TFP260 440v
326.2406T
| Part Number | 326.2406T |
| Height (mm) | 1080 |
| Width | 480 |
| Length (mm) | 1010 |
| Cutting Width (working width on brochure and website) | 250 |
| Cutter head speed (drum rpm on manual) | 1850 |
| Working Distance from Wall (mm) | 75 |
| Weight (kg) | 147.5 |
| Voltage (V) | 440 |
| Cycle (Hz) | 50 / 60 |
| Plug Size | 16 Amp 5 pin |
| Cable Size (mm) | Min. 2.5 core |
| Cable Length (m) | 30 |
| Power (HP- kW) (Power unit in manual) | 7.5 – 5.5 |
| Noise (LwA) | 102.5dB (A) |
| Vibration Levels | 2.4 m/s2 (K= +40% -0% |
| Maximum Cutting Depth (mm) | 6 |
| Vacuum Take off Diameter (mm) | 50 |
Consumables
Drum Assembly TCT Cutters
Part no. 326.1016ST
Drum Assembly TCT Grooving
Part no. 326.1016GT
Drum Assembly Beam Cutters
Part no. 326.1016DB
Drum Assembly Star Cutters
Part no. 326.1016DS
Drum Assembly Milling Cutters
Part no. 326.1016DM
Tungsten Carbide Tipped Cutters
Part no. 320.7009
Star Cutters
Part no. 326.3658
Beam Cutters
Part no. 326.5120
Milling Cutters
Part no. 320.5680
Spacer
Part no. 320.4160
16mm Cutter Shafts
Part no. 326.0016

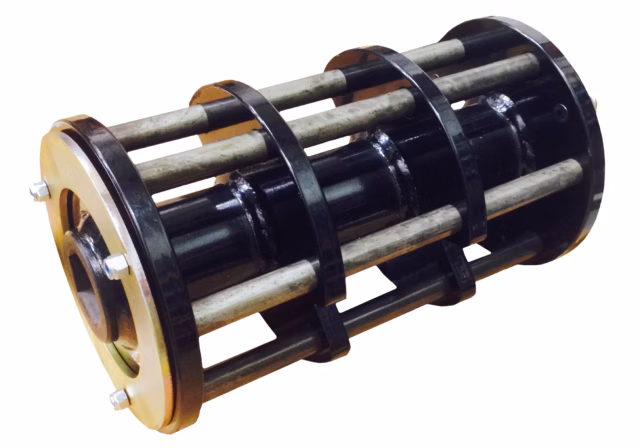

Heavy Duty Double Web Drum
Part no. 326.06DW
View moreView less
Accessories
380v-440v Power Cable
20m
Part no. 669.3124
