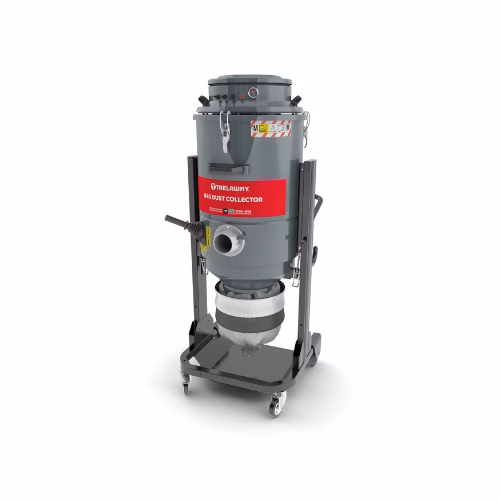

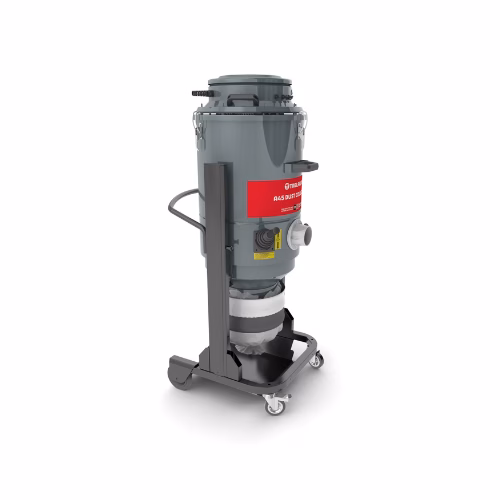

A45 Dust Collector

The A45 single-phase dust collector is recommened for our range of larger grinders, scabblers and scarifiers. Available with the ENDLESSBAG system for dust collection into disposable plastic bags or a portable bin. The A45 offers fantastic performance and capacity in a compact and portable unit for surface preparation machines and general cleaning applications.

Enquire now

Applications

Recommended for use with Trelawny’s TVS® range of concrete scabblers, planers and grinders.

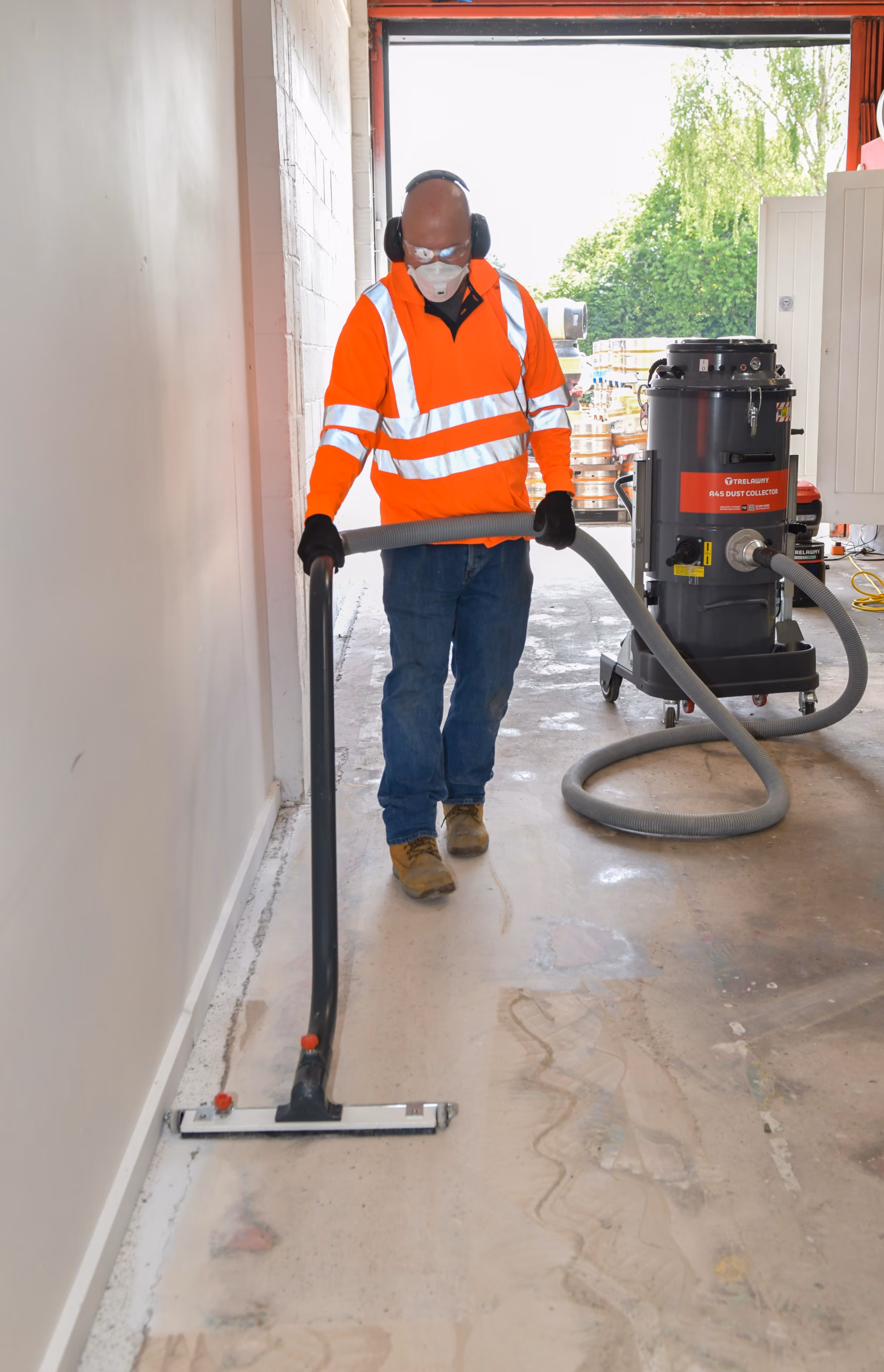

Also ideal for use with other larger types of construction equipment with options for dust extraction.

Features

60 litre capacity.
Filter cleaning mechanism with vacuum gauge to ensure optimum performance.
Triple motors providing 3000-3500w.
M & H Class filter options available.
Detachable bin with option to use disposable bags.

Downloads

Product Specifications


Model	A45 Bin 110v Class M	A45 Bin 230v Class M	A45 Bin 110v HEPA	A45 Bin 230v HEPA	A45 EB 110v Class M	A45 EB 230v Class M	A45 EB 110v HEPA	A45 EB 230v HEPA
Part Number	303.4110	303.4220	303.4112	303.4222	303.4111	303.4221	303.4113	303.4223
Voltage	110	230	110	230	110	230	110	230
Phases	1	1	1	1	1	1	1	1
Frequency hz	50	50	50	50	50	50	50	50
Power kw (HP)	3 (4)	3.5 (4.6)	3 (4)	3.5 (4.6)	3 (4)	3.5 (4.6)	3 (4)	3.5 (4.6)
Plug	IEC Industrial 32 Amp 3 pin	IEC Industrial 16 Amp 3 Pin	IEC Industrial 32 Amp 3 pin	IEC Industrial 16 Amp 3 Pin	IEC Industrial 32 Amp 3 pin	IEC Industrial 16 Amp 3 Pin	IEC Industrial 32 Amp 3 pin	IEC Industrial 16 Amp 3 Pin
Vacuum Rate (mm.H2O)	2500	2500	2500	2500	2500	2500	2500	2500
Max Air flow m³/h	540	540	540	540	540	540	540	540

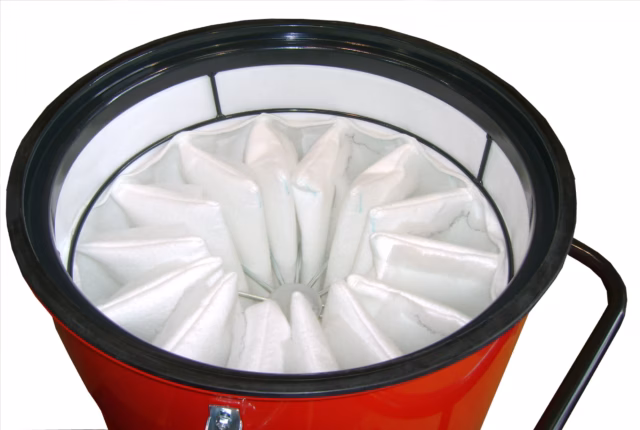

Primary Filter Type	M Class Star	M Class Star	M Class Star	M Class Star	M Class Star	M Class Star	M Class Star	M Class Star
Secondary Filter	N/A	N/A	H14 HEPA	H14 HEPA	N/A	N/A	H14 HEPA	H14 HEPA
Collection type (Bin/Bag)	Bin	Bin	Bin	Bin	Endless bag	Endless bag	Endless bag	Endless bag
Capacity ltrs	60	60	60	60	N/A	N/A	N/A	N/A
Vacuum inlet (Ø) mm	80	80	80	80	80	80	80	80
Height mm	134	134	134	134	155	155	155	155
Width mm	580	580	580	580	580	580	580	580
Length mm	600	600	600	600	600	600	600	600
Weight kg	65	65	65	65	70	70	70	70
Sound Pressure Level Lpa db(A)	76	76	76	76	76	76	76	76
Sound Power Level Lwa db(A)	90.3	90.3	90.3	90.3	90.3	90.3	90.3	90.3
