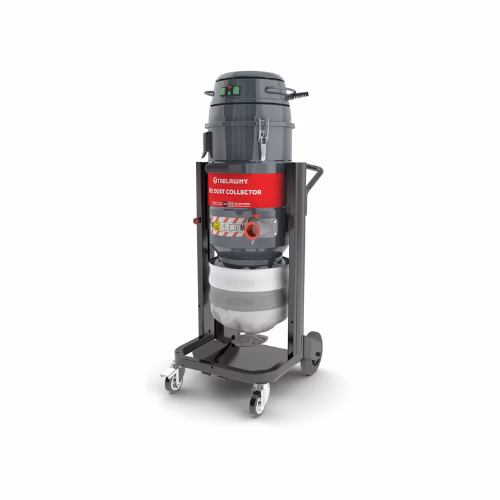

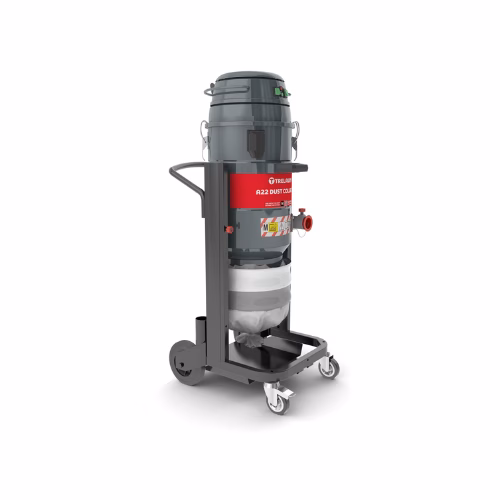

A22 Dust Collector

The A22 single-phase dust collector is the ideal companion for our smaller single-phase grinders and scarifiers. It features the ENDLESSBAG system, which allows for dust collection into disposable plastic bags or a portable bin. The A22 is the ultimate compact unit for surface preparation machines and general cleaning applications, offering both efficiency and versatility in a compact design.

Enquire now

Applications

Recommended for use with Trelawny’s TVS® range of concrete scabblers, planers and grinders.
Also ideal for use with other smaller types of construction equipment with options for dust extraction.

Features

20 litre capacity.
100% steel construction for long service life.
Twin motors providing 2300W.
M & H Class filter options available.
Adjustable height chassis with Endlessbag model.
Reverse pulse filter cleaning system for greater performance.

Download the Datasheets

Product Specifications


Model	A22 Bin 110v Class M	A22 Bin 230v Class M	A22 EB 110v Class M	A22 EB 230v Class M	A22 EB 110v HEPA	A22 EB 230v HEPA
Part Number	303.4100	303.4105	303.4103	303.4107	303.4104	303.4108
Voltage	110	230	110	230	110	230
Phases	1	1	1	1	1	1
Frequency hz	50	50	50	50	50	50
Power kw (HP)	2.3 (3.1)	2.3 (3.1)	2.3 (3.1)	2.3 (3.1)	2.3 (3.1)	2.3 (3.1)
Plug	IEC Industrial 32 Amp 3 pin	IEC Industrial 16 Amp 3 Pin	IEC Industrial 32 Amp 3 pin	IEC Industrial 16 Amp 3 Pin	IEC Industrial 32 Amp 3 pin	IEC Industrial 16 Amp 3 Pin
Vacuum Rate (mm.H2O)	2500	2500	2500	2500	2500	2500
Max Air flow m³/h	360	360	360	360	360	360
Primary Filter Type	M Class Cartridge	M Class Cartridge	M Class Cartridge	M Class Cartridge	M Class Cartridge	M Class Cartridge
Secondary Filter	N/A	N/A	N/A	N/A	H14 HEPA	H14 HEPA
Primary Filter Area cm²	30,000	30,000	30,000	30,000	30,000	30,000
Collection type (Bin/Bag)	Bin	Bin	Endless bag	Endless bag	Endless bag	Endless bag
Capacity ltrs	20	20	N/A	N/A	N/A	N/A
Vacuum inlet (Ø)	50	50	50	50	50	50
Height mm	125	125	130	130	130	130
Width mm	48	48	48	48	48	48
Length mm	59	59	50	50	50	50
Weight kg	35	35	55	55	55	55
Sound Pressure Level Lpa db(A)	76	76	76	76	76	76
Sound Power Level Lwa db(A)	90.3	90.3	90.3	90.3	90.3	90.3
