Floor Grinders

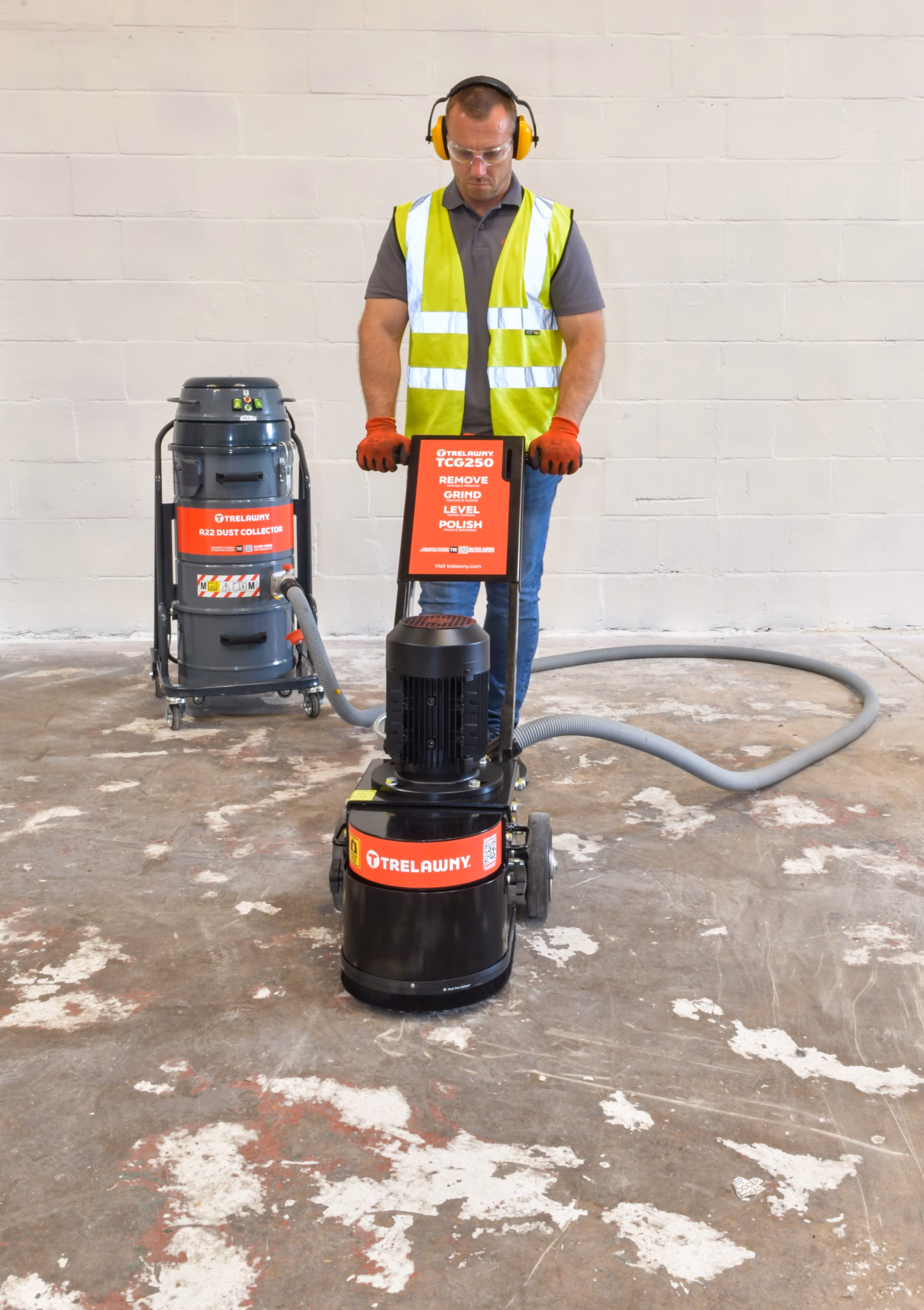

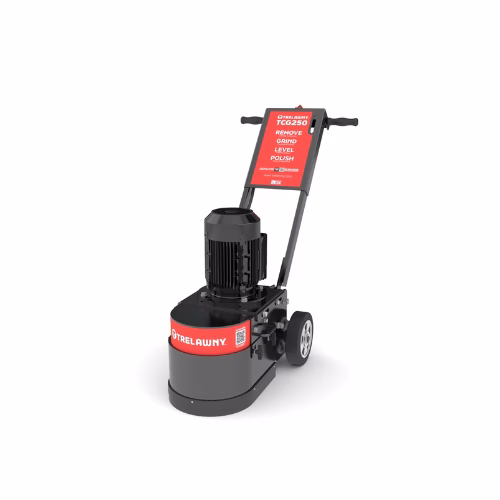

TCG250 Floor Grinder

The TCG250 is a robust single-head grinder designed for levelling and preparing small to medium areas. Its heavy-duty construction, combined with an extensive range of tooling options, provides a versatile solution for various grinding applications, making it an ideal choice for a wide range of surface preparation tasks.

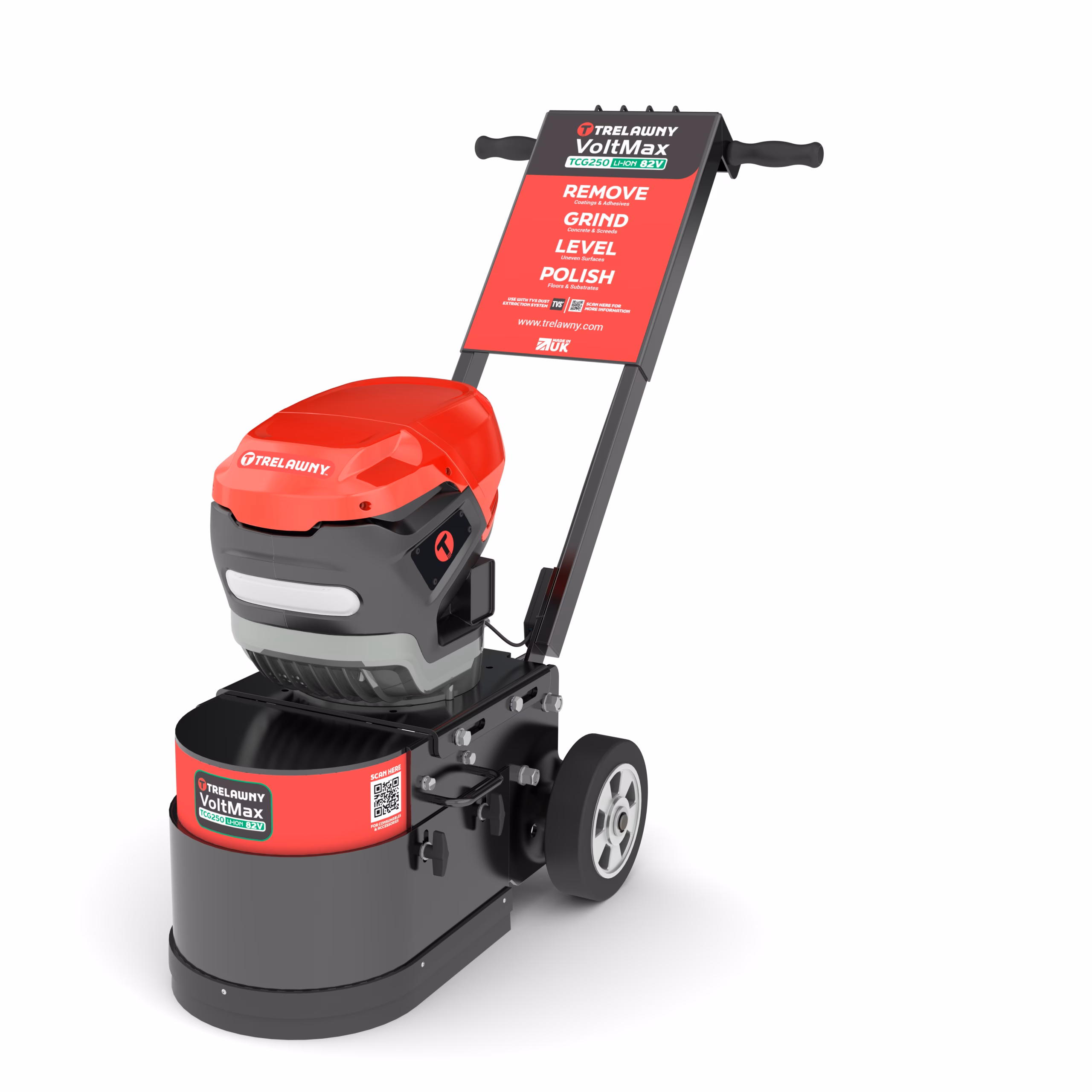

Maximise productivity with the Trelawny VoltMax battery-powered Floor Grinder, available with optional high-capacity 8Ah 82 V batteries and dual-port charger for extended runtime and rapid recharging.

Applications
  • Levelling and smoothing of concrete.
  • Removal of coatings and adhesives.
  • Preparation for new coatings.
  • Repairing rain-damaged concrete.
  • Polishing of concrete and other materials.
Features
  • Available with Trelawny quick release tooling (QR) for a wide range of applications.
  • Trelawny Vibro-Lo™ – low vibration model helps reduce the risk to operators of vibration-related injuries.
  • Angled TVS dust port for virtually dust free working.
  • Flexible grinding head ensures maximum surface contact for improved productivity and performance.
  • Trelawny VoltMax Floor Grinder features a built-in LED work light and three-speed settings for enhanced visibility and control across a range of applications.
Downloads
Product Specifications
Model TCG250 Petrol Diamond Disc TCG250 Petrol Quick Release Plate TCG250 110v Diamond Disc TCG250 110v Quick Release Plate TCG250 230v Diamond Disc TCG250 230v Quick Release Plate TCG250 440v Diamond Disc TCG250 440v Quick Release Plate TCG250-VM Battery Powered Motor TCG250-VM Battery Powered Motor TCG250-VM Battery Powered Motor Inc. 2 x Batteries & Charger* TCG250-VM Battery Powered Motor Inc 2 x Batteries & Charger*
Part Number 345.2400D 345.2400QR 345.2402D 345.2402QR 345.2404D 345.2404QR 345.2406D 345.2406QR 345.2520D 345.2520QR 345.2528D 345.2528QR
Disc type Diamond Disc QR Plate Diamond Disc QR Plate Diamond Disc QR Plate Diamond Disc QR Plate Diamond Disc QR Plate Diamond Disc QR Plate
Power source Petrol Engine Petrol Engine Corded electric Corded electric Corded electric Corded electric Corded electric Corded electric Battery Battery Battery Battery
Voltage N/A N/A 110 110 230 230 400 400 82 82 82 82
Rated current amps N/A N/A 32 32 16 16 16 16 N/A N/A N/A N/A
Phases N/A N/A 1 1 1 1 3 3 N/A N/A N/A N/A
Frequency (hz) N/A N/A 50 50 50/60 50/60 50/60 50/60 N/A N/A N/A N/A
Power kw (HP) 4.1 (5.5) 4.1(5.5) 1.8 (2.4) 1.8 (2.4) 2.2 (3) 2.2(3) 7.4 (5.5) 7.4 (5.5) 3.3 3.3 3.3 3.3
Plug N/A N/A IEC Industrial 32 Amp 3 pin IEC Industrial 32 Amp 3 pin IEC Industrial 16 Amp 5 Pin IEC Industrial 16 Amp 5 Pin IEC Industrial 16 Amp 5 Pin IEC Industrial 16 Amp 5 Pin N/A N/A N/A N/A
Disc speed (RPM) 1070 953 953 953 1385 1385 1675 1675 875-1025 875-1025 875-1025 875-1025
Grinding width (mm) 250 250 250 250 250 250 250 250 250 250 250 250
Vacuum connection (mm) 50 50 50 50 50 50 50 50 50 50 50 50
Weight (kg) 90 90 90 90 90 90 90 90 83 83 91 91
Length (mm) 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100
Width (mm) 450 450 450 450 450 450 450 450 450 450 450 450
Height (mm) 980 980 980 980 980 980 980 980 980 980 980 980
Sound Pressure Level Lpa db(A) 77.2 77.2 71.8 71.8 71.8 71.8 71.8 71.8 71.8 71.8 71.8 71.8
Sound Power Level Lwa db(A) 91.5 91.5 86.04 86.04 86.04 86.04 86.04 86.04 86.04 86.04 86.04 86.04
Vibration m/s² 6.35 6.35 1.25 1.25 0.91 0.91 2.34 2.34 1.25 1.25 1.25 1.25
Runtime (mins) N/A N/A N/A N/A N/A N/A N/A N/A 35 35 35 35
Charge time (mins) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 50 50
Accessories

110v Power Cable 20 metres 669.3121

669.3121

230v Power Cable 20 metres 669.3122

669.3122

440v Power Cable 20 metres 669.3124

669.3124

6 Segment Quick Release Diamond Plate 350.5660

350.5660

Polishing Plates 350.5666

350.5666

Additional Weight 350.9135

350.9135

875.1548 82V OPTIMUS 16A Dual Port Charger

875.1464

82V OPTIMUS 7.2AH CORE530 Battery

Consumables

Diamond Discs 350.5610RA

350.5610RA

Diamond Discs 350.5616RA

350.5616RA

Diamond Discs 350.5620RA

350.5620RA

Diamond Discs 350.5610B

350.5610B

Diamond Discs 350.5616B

350.5616B

Diamond Discs 350.5620B

350.5620B

Diamond Discs 350.5610R

350.5610R

Diamond Discs 350.5616R

350.5616R

Diamond Discs 350.5620R

350.5620R

Removal Diamonds 365.5495R

365.5495R

Removal Diamonds 365.5500

365.5500

Removal Diamonds 365.5500/2

365.5500/2

General Grinding and Levelling 365.5501

365.5501

General Grinding and Levelling 365.5501/2

365.5501/2

General Grinding and Levelling 365.5502

365.5502

General Grinding and Levelling 365.5502/2

365.5502/2

General Grinding and Levelling 365.5503

365.5503

General Grinding and Levelling 365.5503/2

365.5503/2

Fine Grinding 365.5504/2

365.5504/2

Fine Grinding 365.5506/2

365.5506/2

Polishing Tools 365.5610

365.5610

Polishing Tools 365.5620

365.5620

Polishing Tools 365.5602A

365.5602A

Polishing Tools 365.5604A

365.5604A

Polishing Tools 365.5608A

365.5608A

Polishing Tools 365.5618A

365.5618A

Polishing Tools 365.5635A

365.5635A
