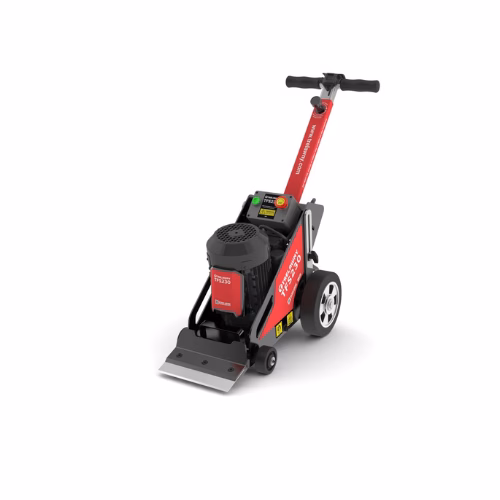

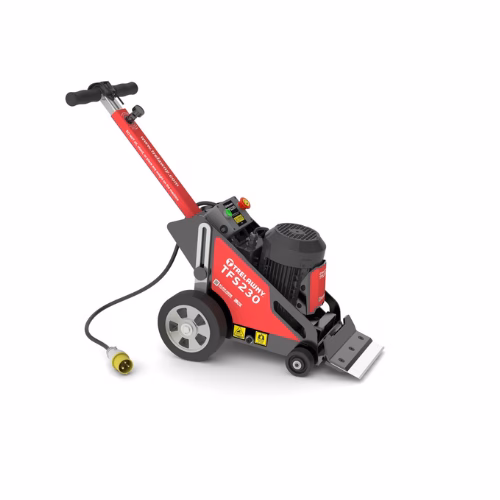

TFS230 Floor Stripper
The Trelawny TFS230 features a compact, robust, and durable chassis, designed for easy transport with its removable handle and a user-friendly blade change system. Perfect for lifting vinyl flooring and carpet tiles, it is an ideal choice for small to medium-sized indoor renovation projects.

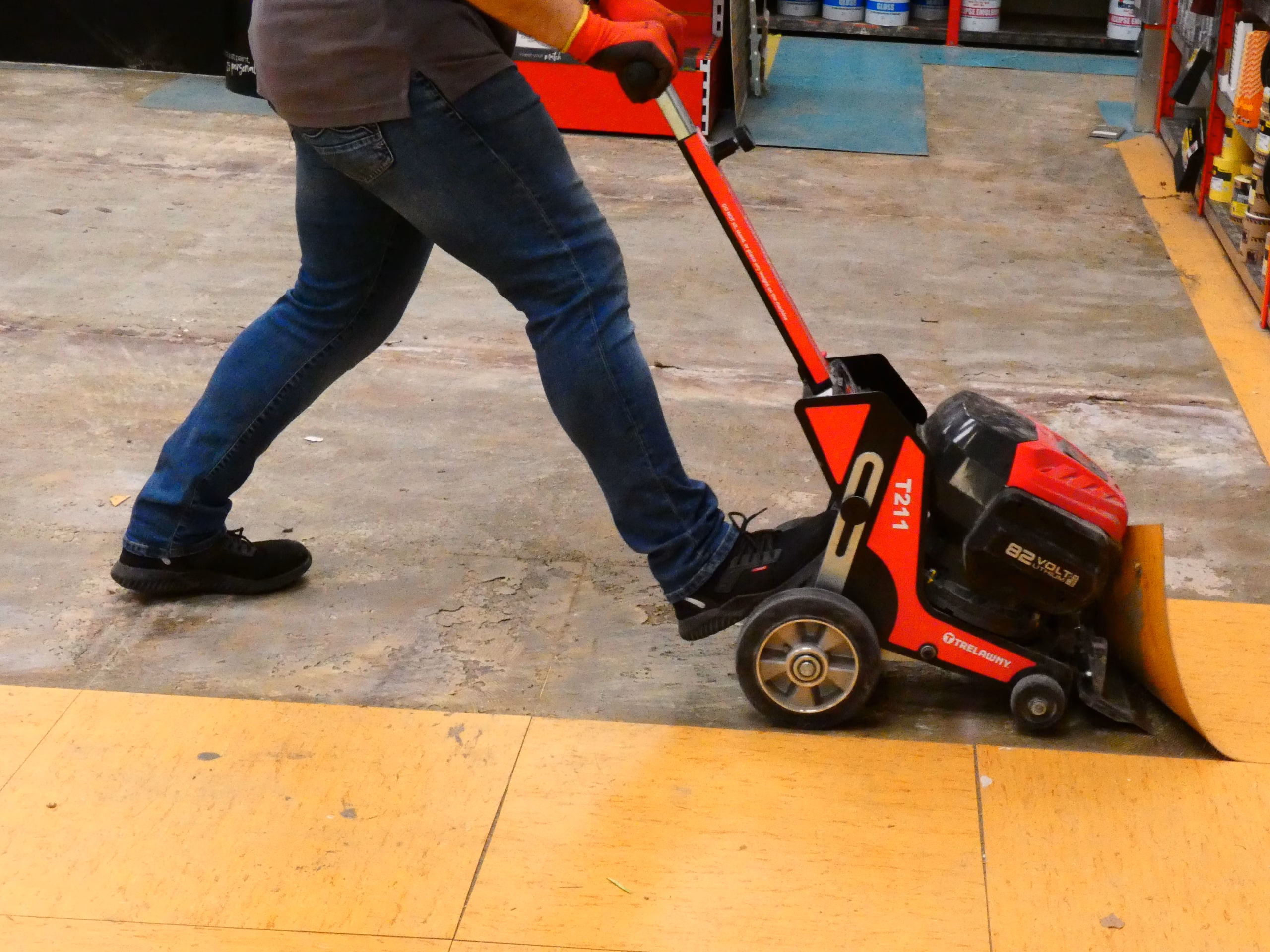

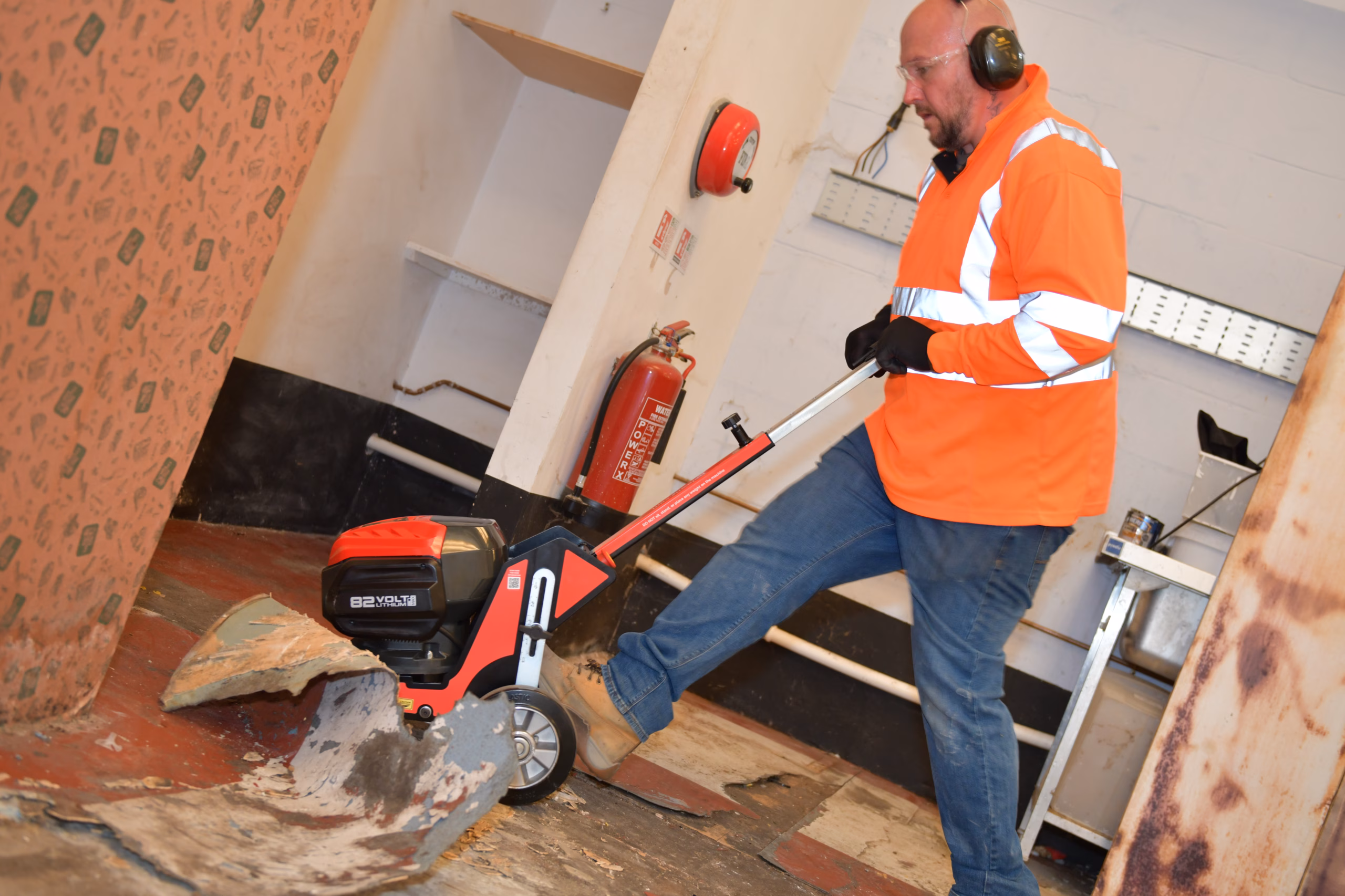

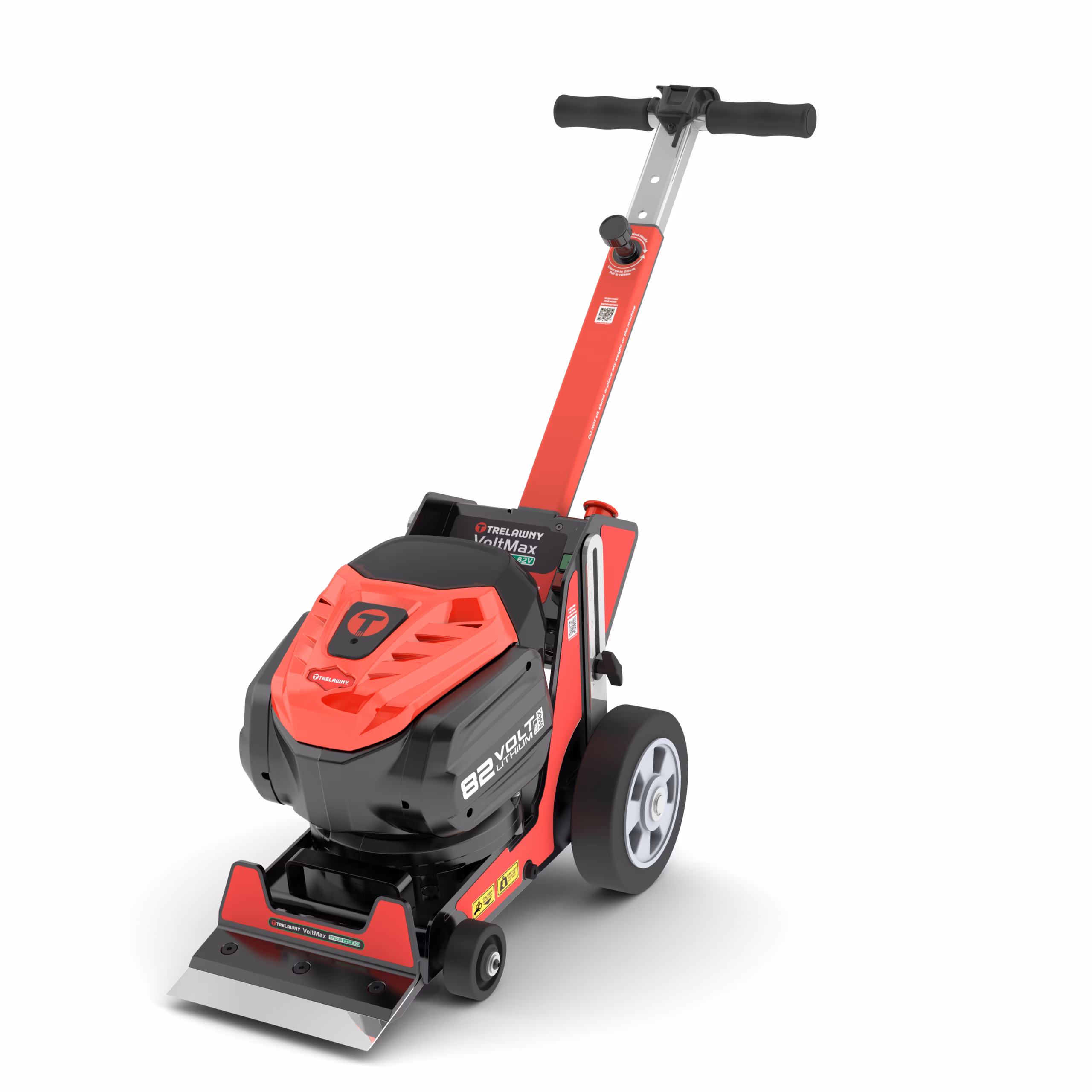

Making jobsites more flexible, the Trelawny VoltMax battery-powered Floor Stripper with optional high-capacity 5Ah 82V battery and dual-port charger, ensures longer runtime and quicker turnaround between charges.
Trelawny VoltMax
Applications
- Removal of Lino, Carpet tiles, Vinyl and other floor coverings.
- Removal of backing adhesives and residues.
Features
- Ergonomic height adjust.
- Simple blade angle adjustment.
- Easy to use with a simple On/Off switch system.
- Effortless replacement of chisel blades.
- High-power drive options —110 V & 230 V electric motors, or cordless 82V battery system.
- Rear kick plate for additional stability.
- Lightweight and durable, the Trelawny VoltMax Floor Stripper fits in a standard car boot for maximum portability.
Key specifications
TFS230 110V
323.2402
| Part Number | 323.2402 |
| Length (mm) (manual includes extended handles and wheels) | 870 |
| Width (mm) (manual includes extended handles and wheels) | 360 |
| Height (mm) (manual includes extended handles and wheels) | 770 |
| Working Width (mm) (blade width in manual) | 230 |
| Weight (kg) | 45 |
| Power (W) | 1100 |
| Motor RPM | 1425 |
| Voltage / Amperage | 110 |
| Noise Levels (LpA) | 82 dba |
| Vibration AEQ (at handle K*) | 11.5 |
TFS230 230V
323.2404
| Part Number | 323.2404 |
| Length (mm) (manual includes extended handles and wheels) | 870 |
| Width (mm) (manual includes extended handles and wheels) | 360 |
| Height (mm) (manual includes extended handles and wheels) | 770 |
| Working Width (mm) (blade width in manual) | 230 |
| Weight (kg) | 45 |
| Power (W) | 1100 |
| Motor RPM | 1425 |
| Voltage (Amperage) | 230 |
| Noise Levels (LpA) | 82 dba |
| Vibration AEQ (at handle K*) | 11.5 |
TFS230-VM Battery Powered Motor
323.2510
| Part No. | 323.2510 |
| Weight (Kg) | 34 |
| Power (HP -Kw) | 1.5 |
| Voltage (V) | 82 |
| Cutter Speed (RPM) | 2,600 |
| Runtime (Mins) | 35 |
| Charge Time* (Mins) | |
| Working Width (mm) | 230 |
| Length (mm) | 870 |
| Width (mm) | 360 |
| Height (mm) | 770 |
TFS230-VM Motor, 1 x Battery & Charger
323.2515
| Part No. | 323.2515 |
| Weight (Kg) | 37 |
| Power (HP -Kw) | 1.5 |
| Voltage (V) | 82 |
| Cutter Speed (RPM) | 2,600 |
| Runtime (Mins) | 35 |
| Charge Time* (Mins) | 50 |
| Working Width (mm) | 230 |
| Length (mm) | 870 |
| Width (mm) | 360 |
| Height (mm) | 770 |
Consumables
Replacement U Blade - Pack of 5
Part no. 323.3510
Replacement U Blade - Single
Part no. 323.3510A
Replacement Blade - Pack of 5
Part no. 323.3509
Replacement Blade - Single
Part no. 323.3509A
View moreView less
Accessories
Dual-Port Charger
Part no. 875.4164

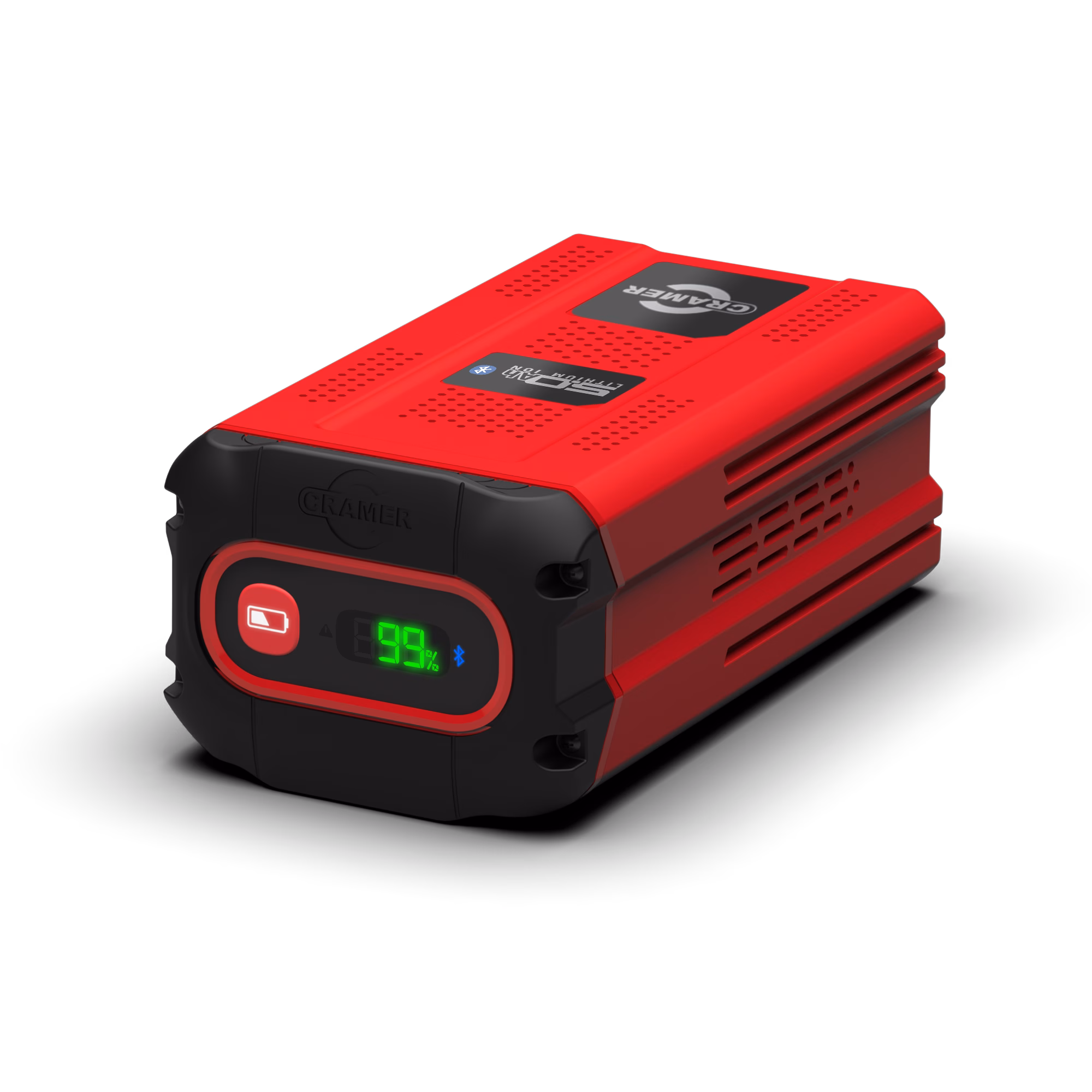

5Ah Battery
Part no. 875.4165
View moreView less
